PR49MF11NSZF

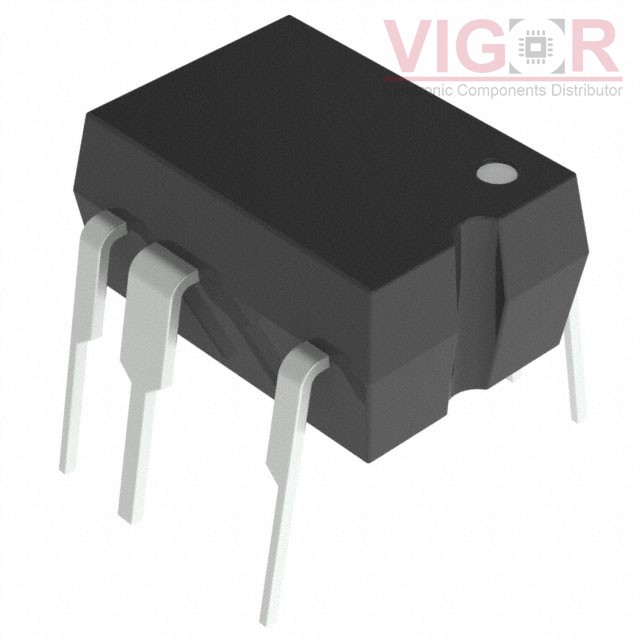

Image is for reference,
please contact us to get the real picture

Part No :: PR49MF11NSZF

Manufacturer: Sharp Microelectronics

Description: OPTOISOLATOR 4KV PWR TRIAC 8DIP

Catalog: Optoisolators - Triac, SCR Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: PR49MF11NSZF PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PR49MF11NSZF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PR49MF11NSZF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Type:	Triac, Power
Zero Crossing Circuit:	No
Number of Channels:	1
Voltage - Isolation:	4000Vrms
Voltage - Off State:	800 V
Static dV/dt (Min):	50V/µs
Current - LED Trigger (Ift) (Max):	10mA
Current - On State (It (RMS)) (Max):	900 mA
Current - Hold (Ih):	50mA
Turn On Time:	100µs (Max)
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Operating Temperature:	-25°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package:	8-DIP
Approval Agency:	CSA, UR

Please confirm the specifications of the products when ordering.
