S2S5A

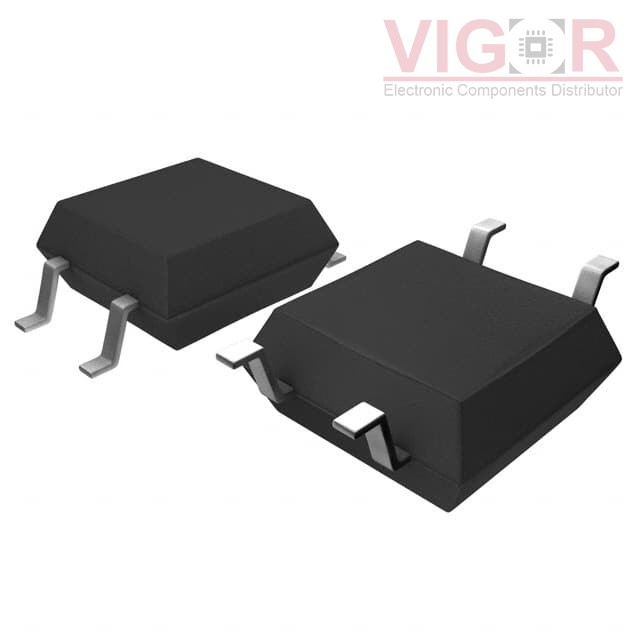

Image is for reference,
please contact us to get the real picture

Part No :: S2S5A

Manufacturer: Sharp Microelectronics

Description: OPTOISOLATOR 3.75KV TRIAC 4SMD

Catalog: Optoisolators - Triac, SCR Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: S2S5A PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of S2S5A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S2S5A Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Output Type:	Triac
Zero Crossing Circuit:	No
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Voltage - Off State:	600 V
Static dV/dt (Min):	500V/µs
Current - LED Trigger (Ift) (Max):	10mA
Current - On State (It (RMS)) (Max):	50 mA
Current - Hold (Ih):	3.5mA
Turn On Time:	100µs (Max)
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD
Supplier Device Package:	4-SMD
Approval Agency:	CSA, UR

Please confirm the specifications of the products when ordering.
