BRT23-F

BRT23-F

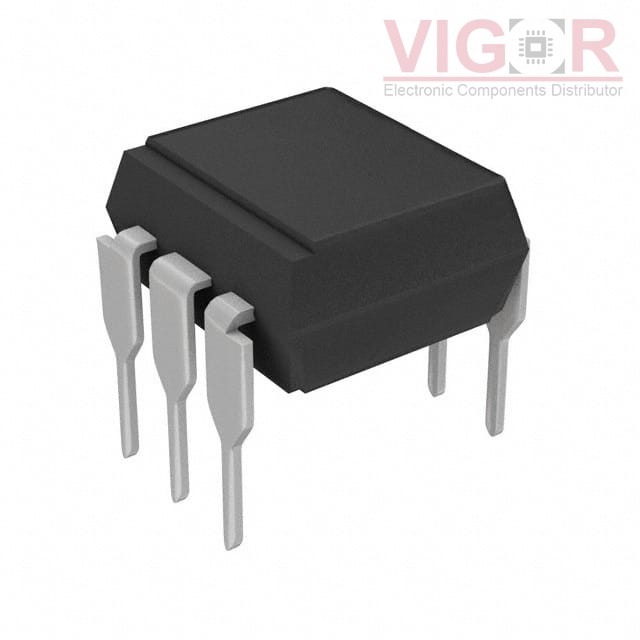

Image is for reference,
please contact us to get the real picture

Part No :

BRT23-F

Manufacturer
Vishay / Semiconductor - Opto Division
Description
PHOTOCOUPLER TRIAC 800V 6DIP
Catalog
Optoisolators - Triac, SCR Output
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
BRT23-F PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of BRT23-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BRT23-F Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Output Type:Triac
Zero Crossing Circuit:Yes
Number of Channels:1
Voltage - Isolation:5300Vrms
Voltage - Off State:800 V
Static dV/dt (Min):10kV/µs
Current - LED Trigger (Ift) (Max):1.2mA
Current - On State (It (RMS)) (Max):300 mA
Current - Hold (Ih):500µA
Turn On Time:35µs
Voltage - Forward (Vf) (Typ):1.16V
Current - DC Forward (If) (Max):60 mA
Operating Temperature:-40°C ~ 100°C
Mounting Type:Through Hole
Package / Case:6-DIP (0.300", 7.62mm)
Supplier Device Package:6-DIP
Approval Agency:CQC, UL
