PC4SD21NTZCF

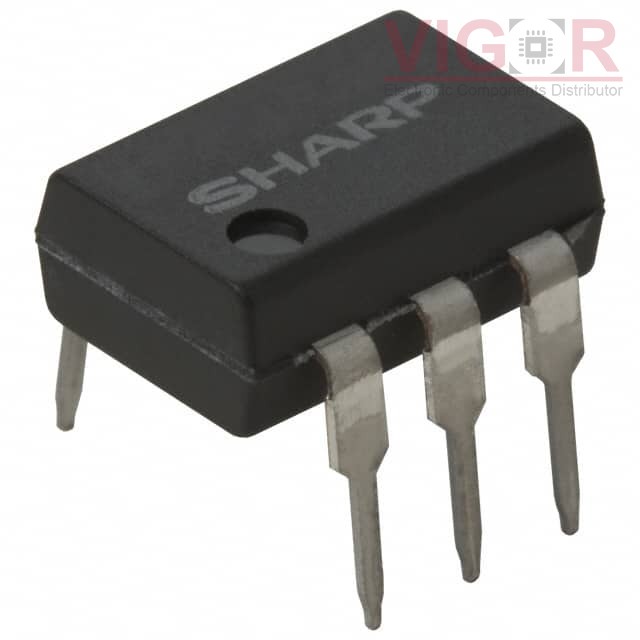

Image is for reference,
please contact us to get the real picture

Part No :: PC4SD21NTZCF

Manufacturer: Sharp Microelectronics

Description: OPTOISOLATOR 5KV TRIAC 6DIP

Catalog: Optoisolators - Triac, SCR Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 23 - Jul 27 2025

DataSheet: PC4SD21NTZCF PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PC4SD21NTZCF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC4SD21NTZCF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Discontinued at Digi-Key
Output Type:	Triac
Zero Crossing Circuit:	Yes
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Voltage - Off State:	800 V
Static dV/dt (Min):	500V/µs
Current - LED Trigger (Ift) (Max):	5mA
Current - On State (It (RMS)) (Max):	100 mA
Current - Hold (Ih):	3.5mA
Turn On Time:	50µs (Max)
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package:	6-DIP
Approval Agency:	CSA, UR

Please confirm the specifications of the products when ordering.
