B66307G0240X187

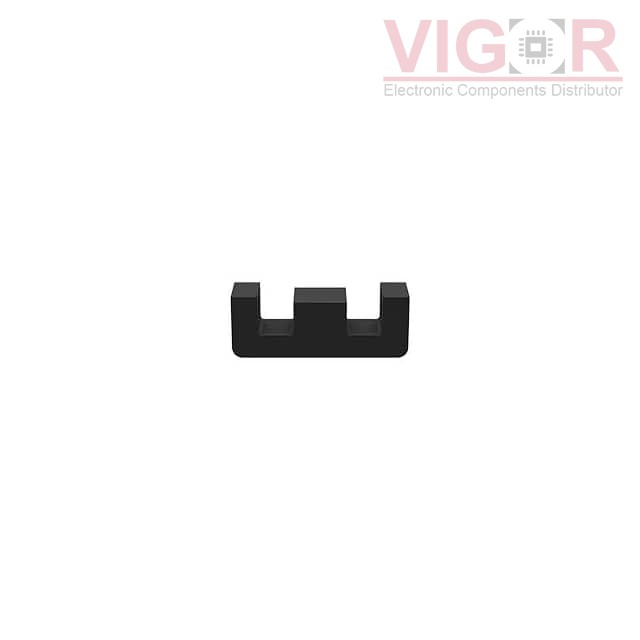

Image is for reference,
please contact us to get the real picture

Part No :: B66307G0240X187

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: B66307G0240X187 PDF

Availability: 5868 pieces

Unit Price: ~~$0.61000~~

Current price of B66307G0240X187 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66307G0240X187 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	E
Supplier Device Package:	E 16 x 8 x 5
Material:	N87
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	-
Effective Permeability (µe):	-
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	1.87
Effective Length (le) mm:	37.6
Effective Area (Ae) mm²:	20.1
Minimum Core Cross Section (Amin) mm²:	19.4
Effective Magnetic Volume (Ve) mm³:	756
Finish:	Uncoated
Height:	8.20mm
Length:	16.00mm
Width:	4.70mm
