B66317G0000X197

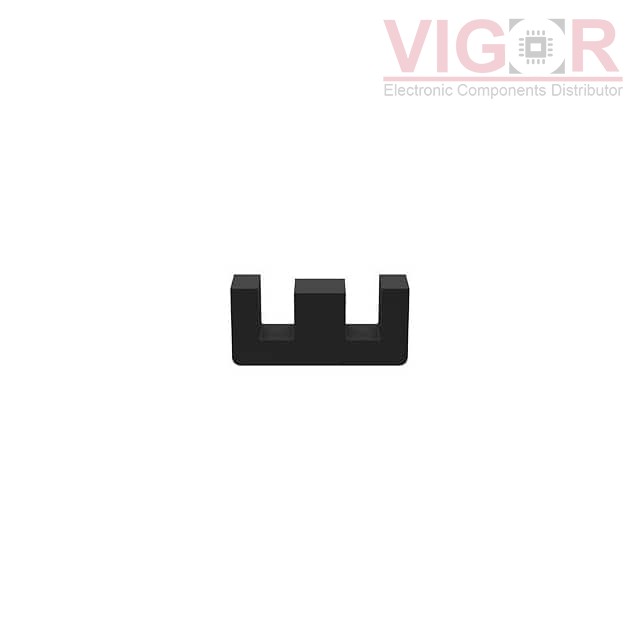

Image is for reference,
please contact us to get the real picture

Part No :: B66317G0000X197

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: B66317G0000X197 PDF

Availability: 0 pieces

Unit Price: ~~$0.37546~~

Current price of B66317G0000X197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66317G0000X197 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	E
Supplier Device Package:	E 25 x 13 x 7
Material:	N97
Diameter:	-
Inductance Factor (Al):	1.95 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1700
Initial Permeability (µi):	2300
Core Factor (ΣI/A) mm^-1:	1.1
Effective Length (le) mm:	57.5
Effective Area (Ae) mm²:	52.5
Minimum Core Cross Section (Amin) mm²:	51.5
Effective Magnetic Volume (Ve) mm³:	3020
Finish:	Uncoated
Height:	12.80mm
Length:	25.00mm
Width:	7.50mm

Please confirm the specifications of the products when ordering.
