B65815E0000R097

B65815E0000R097

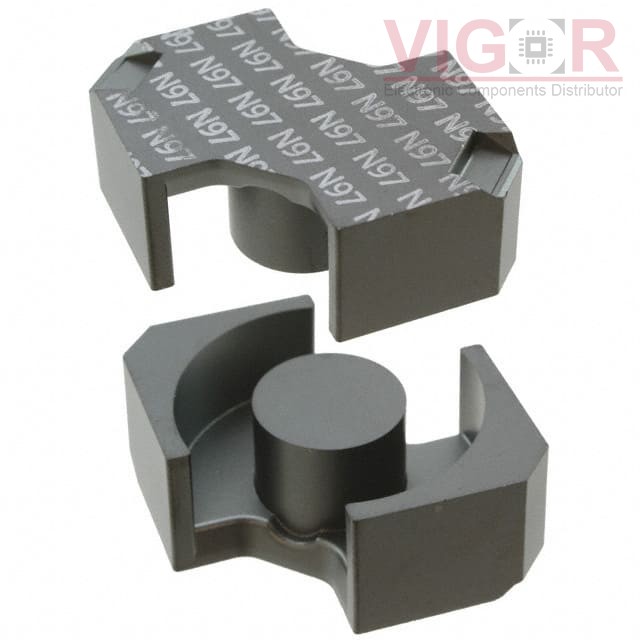

Image is for reference,
please contact us to get the real picture

Part No :

B65815E0000R097

Manufacturer
TDK EPCOS
Description
FERRITE CORE RM 5.3UH N97 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
B65815E0000R097 PDF
Availability
181 pieces
Unit Price
$5.36000

Current price of B65815E0000R097 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65815E0000R097 Specifications
Type Description
Series:B65815
Package:Box
Part Status:Active
Core Type:RM
Supplier Device Package:RM 12
Material:N97
Diameter:-
Inductance Factor (Al):5.3 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1640
Initial Permeability (µi):2300
Core Factor (ΣI/A) mm-1:0.39
Effective Length (le) mm:57
Effective Area (Ae) mm²:146
Minimum Core Cross Section (Amin) mm²:125
Effective Magnetic Volume (Ve) mm³:8320
Finish:Uncoated
Height:12.30mm
Length:37.60mm
Width:16.10mm
