B66311G0150X127

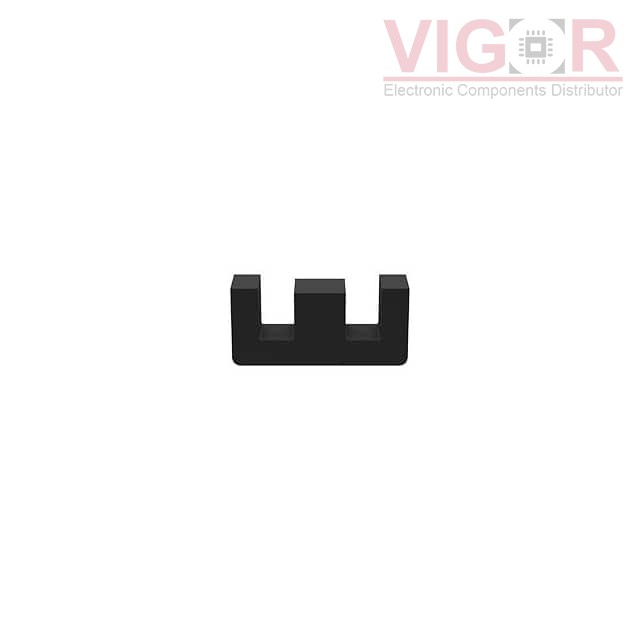

Image is for reference,
please contact us to get the real picture

Part No :: B66311G0150X127

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: B66311G0150X127 PDF

Availability: 0 pieces

Unit Price: ~~$0.25002~~

Current price of B66311G0150X127 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66311G0150X127 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	E
Supplier Device Package:	E 20 x 10 x 6
Material:	N27
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	-
Effective Permeability (µe):	-
Initial Permeability (µi):	2000
Core Factor (ΣI/A) mm^-1:	1.44
Effective Length (le) mm:	46.3
Effective Area (Ae) mm²:	32.1
Minimum Core Cross Section (Amin) mm²:	31.9
Effective Magnetic Volume (Ve) mm³:	1490
Finish:	Uncoated
Height:	10.10mm
Length:	20.40mm
Width:	5.90mm

Please confirm the specifications of the products when ordering.
