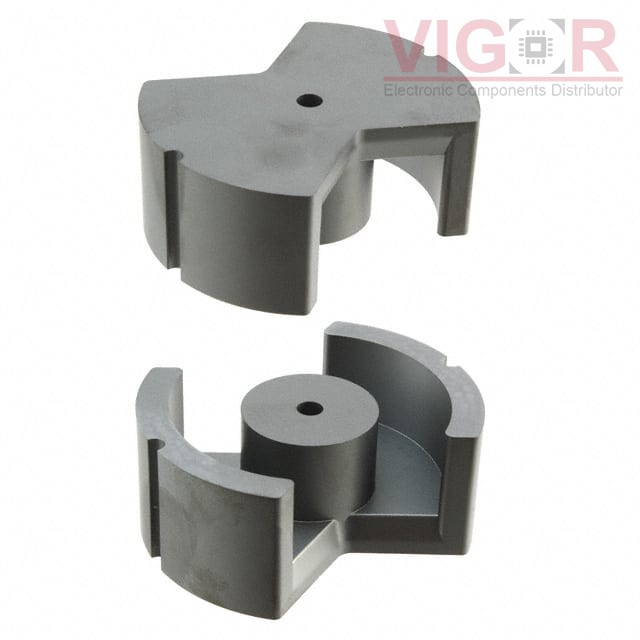

B65686A0315A027

Image is for reference,
please contact us to get the real picture

Part No :: B65686A0315A027

Manufacturer: TDK EPCOS

Description: FERRITE CORE PM 315NH N27 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: B65686A0315A027 PDF

Availability: 3 pieces

Unit Price: ~~$59.04000~~

Current price of B65686A0315A027 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65686A0315A027 Specifications

Type	Description
Series:	B65686
Package:	Box
Part Status:	Active
Core Type:	PM
Supplier Device Package:	PM 74 x 59
Material:	N27
Diameter:	74.00mm
Inductance Factor (Al):	315 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	41
Initial Permeability (µi):	2000
Core Factor (ΣI/A) mm^-1:	0.162
Effective Length (le) mm:	128
Effective Area (Ae) mm²:	790
Minimum Core Cross Section (Amin) mm²:	630
Effective Magnetic Volume (Ve) mm³:	101000
Finish:	Uncoated
Height:	29.50mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
