B65839A0100A057

B65839A0100A057

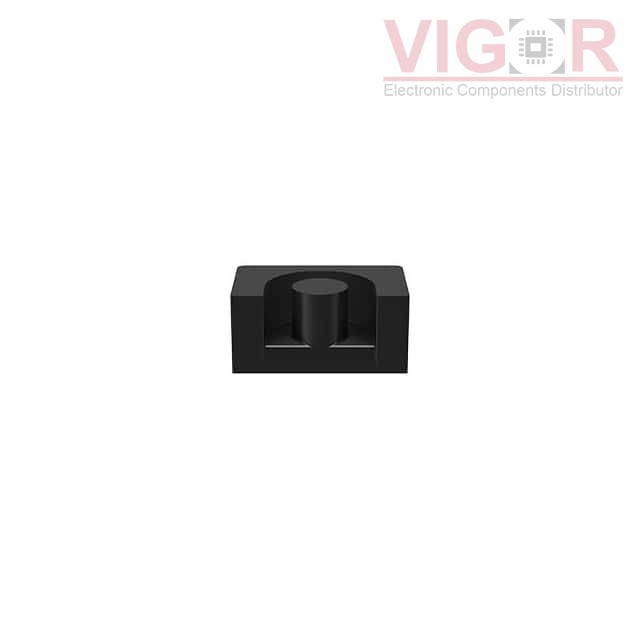

Image is for reference,
please contact us to get the real picture

Part No :

B65839A0100A057

Manufacturer
TDK EPCOS
Description
FERRITE CORE EP 100NH T57 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
B65839A0100A057 PDF
Availability
0 pieces
Unit Price
$0.42254

Current price of B65839A0100A057 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65839A0100A057 Specifications
Type Description
Series:B65839
Package:Box
Part Status:Active
Core Type:EP
Supplier Device Package:EP 7
Material:T57
Diameter:-
Inductance Factor (Al):100 nH
Tolerance:±3%
Gap:Gapped
Effective Permeability (µe):121
Initial Permeability (µi):4000
Core Factor (ΣI/A) mm-1:1.52
Effective Length (le) mm:15.7
Effective Area (Ae) mm²:10.3
Minimum Core Cross Section (Amin) mm²:8.5
Effective Magnetic Volume (Ve) mm³:162
Finish:Uncoated
Height:3.75mm
Length:9.40mm
Width:6.50mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
