PLT22/16/2.5/S-3F46

PLT22/16/2.5/S-3F46

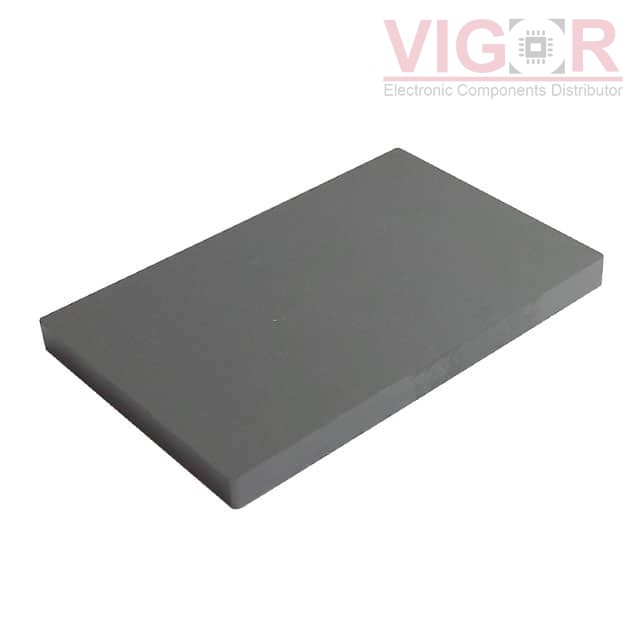

Image is for reference,
please contact us to get the real picture

Part No :

PLT22/16/2.5/S-3F46

Manufacturer
FERROXCUBE
Description
FERRITE CORE
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
PLT22/16/2.5/S-3F46 PDF
Availability
1657 pieces
Unit Price
$1.03000

Current price of PLT22/16/2.5/S-3F46 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PLT22/16/2.5/S-3F46 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Core Type:PLT
Supplier Device Package:PLT 22 x 16 x 2.5
Material:3F46
Diameter:-
Inductance Factor (Al):-
Tolerance:-
Gap:-
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:-
Effective Length (le) mm:-
Effective Area (Ae) mm²:-
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:-
Finish:Uncoated
Height:2.90mm
Length:21.80mm
Width:15.80mm
