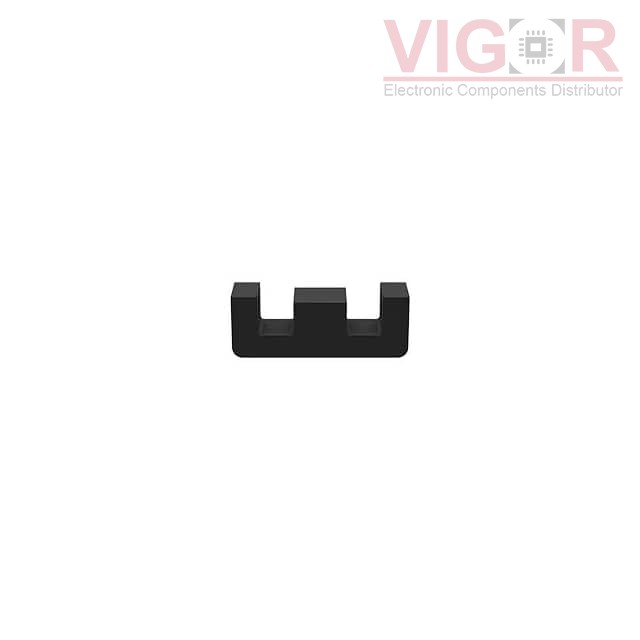

B66393G0000X197

Image is for reference,
please contact us to get the real picture

Part No :: B66393G0000X197

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: B66393G0000X197 PDF

Availability: 0 pieces

Unit Price: ~~$0.27451~~

Current price of B66393G0000X197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66393G0000X197 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	E
Supplier Device Package:	E 16 x 6 x 5
Material:	N97
Diameter:	-
Inductance Factor (Al):	1.25 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	1480
Initial Permeability (µi):	2300
Core Factor (ΣI/A) mm^-1:	1.49
Effective Length (le) mm:	28.6
Effective Area (Ae) mm²:	19.2
Minimum Core Cross Section (Amin) mm²:	17.6
Effective Magnetic Volume (Ve) mm³:	549
Finish:	Uncoated
Height:	5.80mm
Length:	16.00mm
Width:	4.70mm

Please confirm the specifications of the products when ordering.
