PC95ER14/4.5/9-Z

PC95ER14/4.5/9-Z

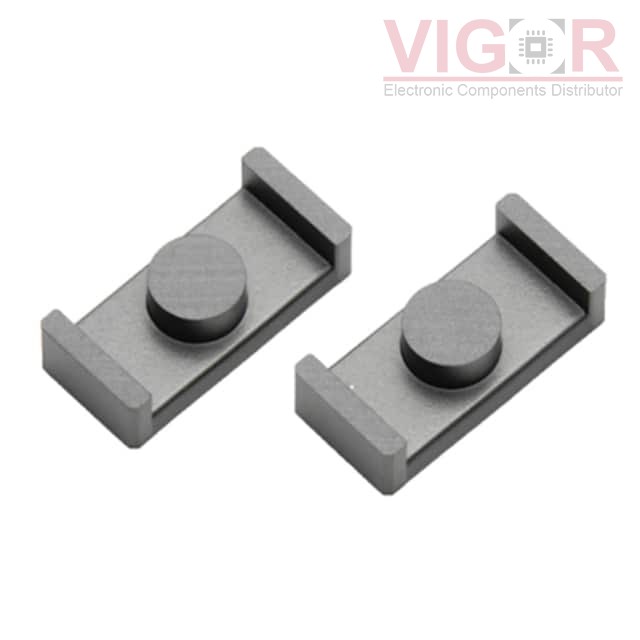

Image is for reference,
please contact us to get the real picture

Part No :

PC95ER14/4.5/9-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE ER 2.55UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
PC95ER14/4.5/9-Z PDF
Availability
703 pieces
Unit Price
$0.84000

Current price of PC95ER14/4.5/9-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95ER14/4.5/9-Z Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:ER
Supplier Device Package:EI 14 x 4.5 x 9
Material:PC95
Diameter:-
Inductance Factor (Al):2.55 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.68
Effective Length (le) mm:22.7
Effective Area (Ae) mm²:15.4
Minimum Core Cross Section (Amin) mm²:21.2
Effective Magnetic Volume (Ve) mm³:349
Finish:Uncoated
Height:2.25mm
Length:13.85mm
Width:9.00mm
