B64290A0705X830

B64290A0705X830

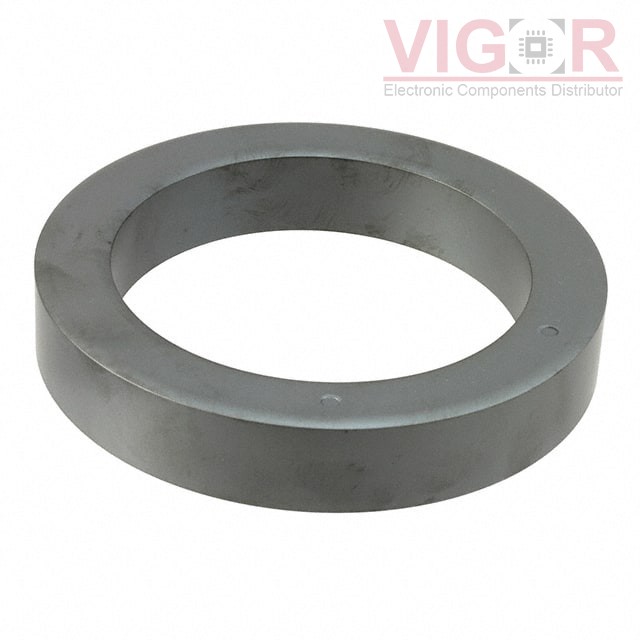

Image is for reference,
please contact us to get the real picture

Part No :

B64290A0705X830

Manufacturer
TDK EPCOS
Description
FERRITE CORE TOROID 6.2UH N30
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
B64290A0705X830 PDF
Availability
4 pieces
Unit Price
$113.26000

Current price of B64290A0705X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290A0705X830 Specifications
Type Description
Series:B64290
Package:Box
Part Status:Active
Core Type:Toroid
Supplier Device Package:R 140 x 103 x 25
Material:N30
Diameter:140.00mm
Inductance Factor (Al):6.2 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):4000
Core Factor (ΣI/A) mm-1:0.82
Effective Length (le) mm:375.8
Effective Area (Ae) mm²:458.9
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:172440
Finish:Uncoated
Height:25.00mm
Length:-
Width:-
