B64290P0683X038

B64290P0683X038

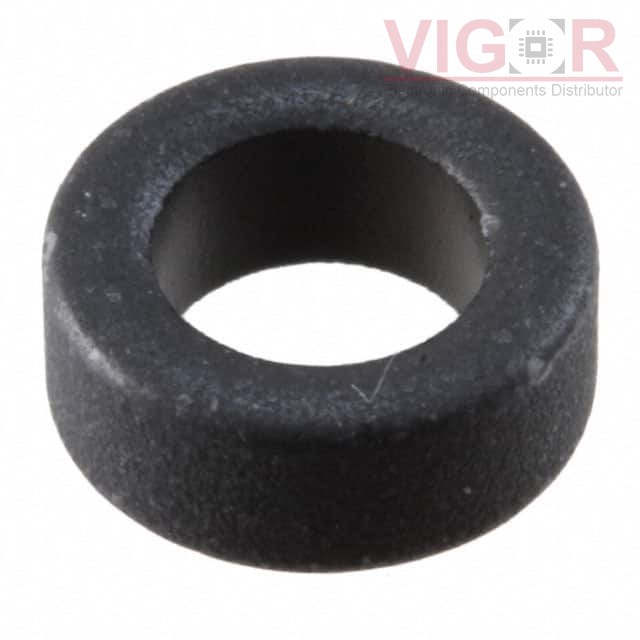

Image is for reference,
please contact us to get the real picture

Part No :

B64290P0683X038

Manufacturer
TDK EPCOS
Description
FERRITE CORE TOROID 2.2UH T38
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
B64290P0683X038 PDF
Availability
0 pieces
Unit Price
$0.13965

Current price of B64290P0683X038 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290P0683X038 Specifications
Type Description
Series:B64290
Package:Box
Part Status:Active
Core Type:Toroid
Supplier Device Package:-
Material:T38
Diameter:3.07mm
Inductance Factor (Al):2.2 µH
Tolerance:±30%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):9900
Core Factor (ΣI/A) mm-1:5.65
Effective Length (le) mm:5.99
Effective Area (Ae) mm²:1.06
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:6.4
Finish:Parylene
Height:1.29mm
Length:-
Width:-
