B65843A0160B057

B65843A0160B057

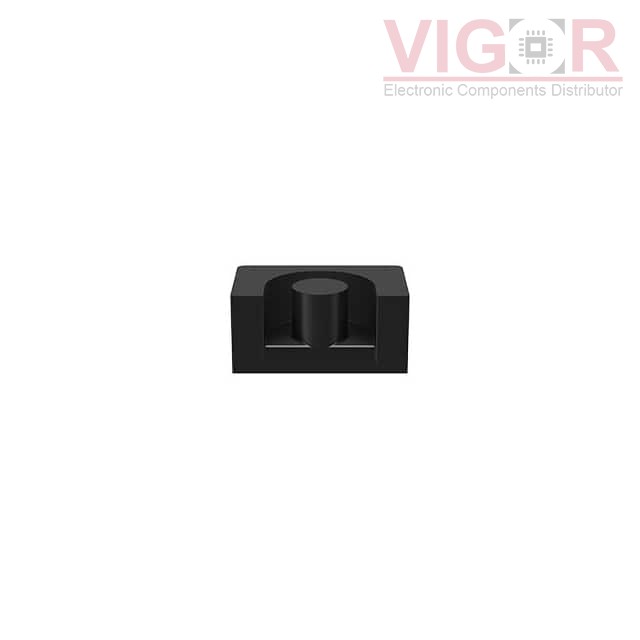

Image is for reference,
please contact us to get the real picture

Part No :

B65843A0160B057

Manufacturer
TDK EPCOS
Description
FERRITE CORE EP 160NH T57 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
B65843A0160B057 PDF
Availability
0 pieces
Unit Price
$0.68748

Current price of B65843A0160B057 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65843A0160B057 Specifications
Type Description
Series:B65843A
Package:Box
Part Status:Active
Core Type:EP
Supplier Device Package:EP 13
Material:T57
Diameter:-
Inductance Factor (Al):160 nH
Tolerance:±4%
Gap:Gapped
Effective Permeability (µe):158
Initial Permeability (µi):4000
Core Factor (ΣI/A) mm-1:1.24
Effective Length (le) mm:24.2
Effective Area (Ae) mm²:19.5
Minimum Core Cross Section (Amin) mm²:14.9
Effective Magnetic Volume (Ve) mm³:472
Finish:Uncoated
Height:6.50mm
Length:12.80mm
Width:9.00mm
