B64290L0647X830

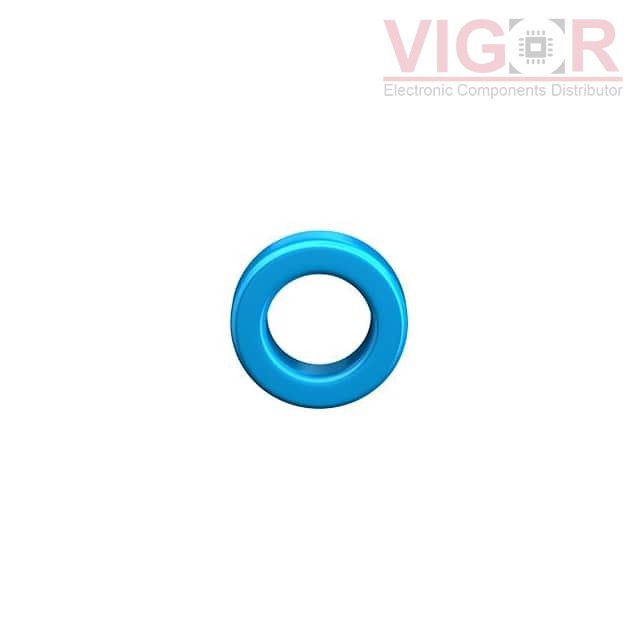

Image is for reference,
please contact us to get the real picture

Part No :: B64290L0647X830

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 5.63UH N30

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: B64290L0647X830 PDF

Availability: 595 pieces

Unit Price: ~~$3.33000~~

Current price of B64290L0647X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290L0647X830 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	N30
Diameter:	31.00mm
Inductance Factor (Al):	5.63 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	4300
Core Factor (ΣI/A) mm^-1:	0.96
Effective Length (le) mm:	73.78
Effective Area (Ae) mm²:	76.98
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	5680
Finish:	Epoxy
Height:	16.10mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
