B65513J0000R049

B65513J0000R049

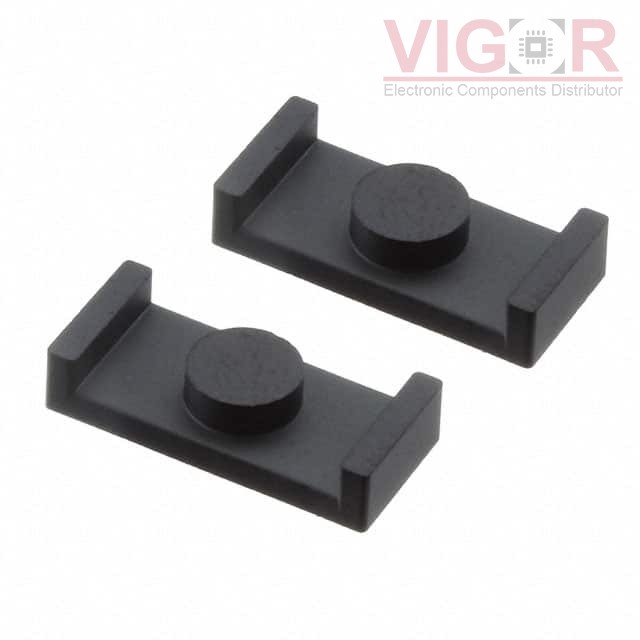

Image is for reference,
please contact us to get the real picture

Part No :

B65513J0000R049

Manufacturer
TDK EPCOS
Description
FERRITE CORE ER 1.1UH N49 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
B65513J0000R049 PDF
Availability
1760 pieces
Unit Price
$1.53000

Current price of B65513J0000R049 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65513J0000R049 Specifications
Type Description
Series:B65513
Package:Box
Part Status:Active
Core Type:ER
Supplier Device Package:ER 14.5 x 6
Material:N49
Diameter:-
Inductance Factor (Al):1.1 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):800
Initial Permeability (µi):1500
Core Factor (ΣI/A) mm-1:1.1
Effective Length (le) mm:19
Effective Area (Ae) mm²:17.6
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:333
Finish:Uncoated
Height:2.95mm
Length:14.50mm
Width:6.70mm
