PC95ELT25X8.6-Z

PC95ELT25X8.6-Z

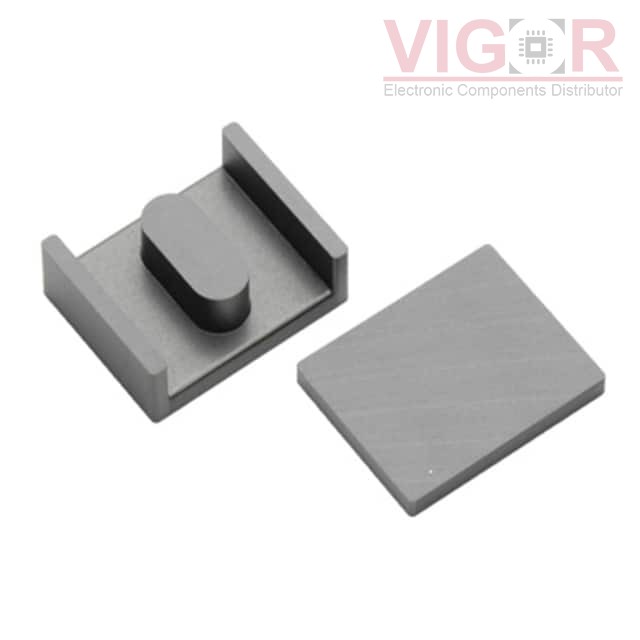

Image is for reference,
please contact us to get the real picture

Part No :

PC95ELT25X8.6-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE ELT 7.54UH 1SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
PC95ELT25X8.6-Z PDF
Availability
161 pieces
Unit Price
$4.54000

Current price of PC95ELT25X8.6-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95ELT25X8.6-Z Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:ELH, PLT
Supplier Device Package:ELT 25 x 8.6
Material:PC95
Diameter:-
Inductance Factor (Al):7.54 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.35
Effective Length (le) mm:85.6
Effective Area (Ae) mm²:30
Minimum Core Cross Section (Amin) mm²:83
Effective Magnetic Volume (Ve) mm³:2570
Finish:Uncoated
Height:6.29mm
Length:25.00mm
Width:20.00mm
