PC47EPC13-Z

PC47EPC13-Z

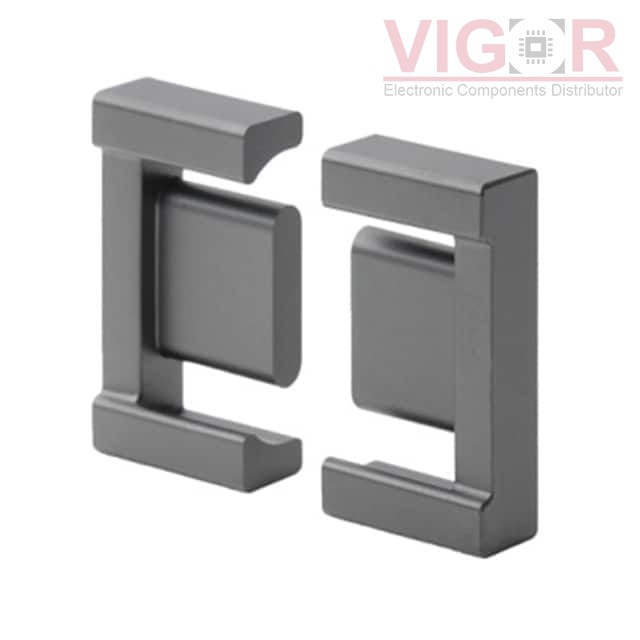

Image is for reference,
please contact us to get the real picture

Part No :

PC47EPC13-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE EPC 870NH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
PC47EPC13-Z PDF
Availability
129 pieces
Unit Price
$0.76000

Current price of PC47EPC13-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC47EPC13-Z Specifications
Type Description
Series:EPC
Package:Tray
Part Status:Active
Core Type:EPC
Supplier Device Package:EPC 13
Material:PC47
Diameter:-
Inductance Factor (Al):870 nH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:2.45
Effective Length (le) mm:30.6
Effective Area (Ae) mm²:12.5
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:382
Finish:Uncoated
Height:6.60mm
Length:13.25mm
Width:4.60mm
