B64290L0022X830

B64290L0022X830

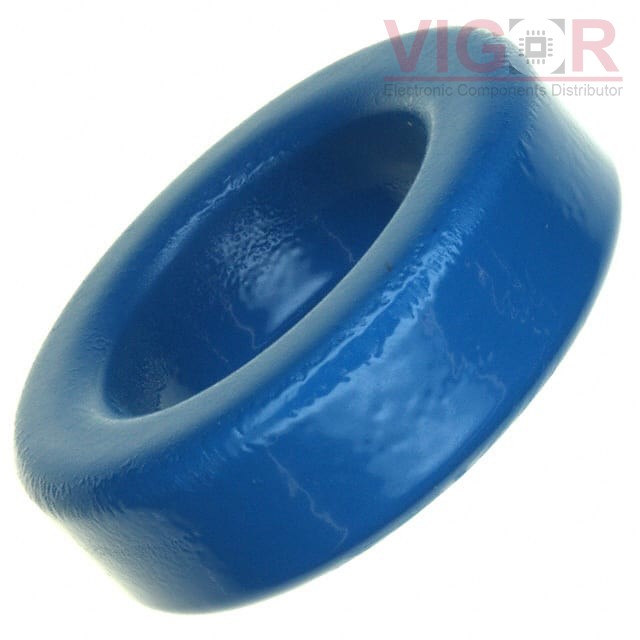

Image is for reference,
please contact us to get the real picture

Part No :

B64290L0022X830

Manufacturer
TDK EPCOS
Description
FERRITE CORE TOROID 5UH N30
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
B64290L0022X830 PDF
Availability
109 pieces
Unit Price
$4.19000

Current price of B64290L0022X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290L0022X830 Specifications
Type Description
Series:B64290
Package:Tray
Part Status:Active
Core Type:Toroid
Supplier Device Package:-
Material:N30
Diameter:43.60mm
Inductance Factor (Al):5 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):4300
Core Factor (ΣI/A) mm-1:1.08
Effective Length (le) mm:103
Effective Area (Ae) mm²:95.75
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:9862
Finish:Epoxy
Height:13.60mm
Length:-
Width:-
