B66375G0000X197

B66375G0000X197

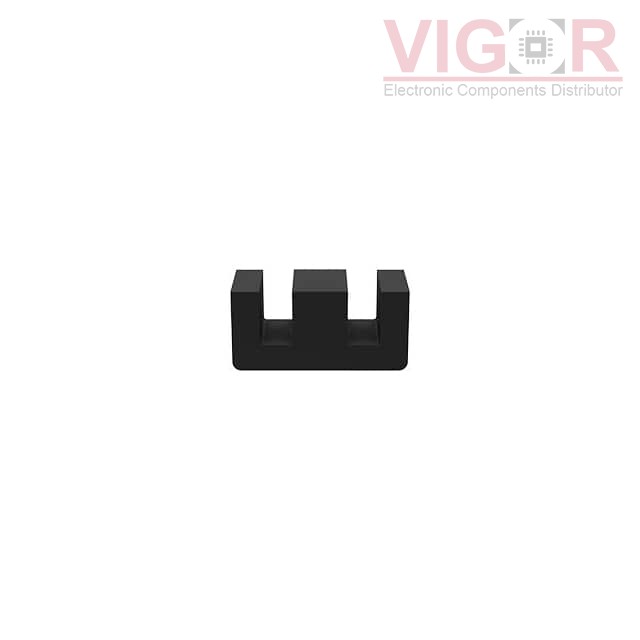

Image is for reference,
please contact us to get the real picture

Part No :

B66375G0000X197

Manufacturer
TDK EPCOS
Description
E80/38/20 N97 4700 +30% -20%
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
B66375G0000X197 PDF
Availability
0 pieces
Unit Price
$5.46463

Current price of B66375G0000X197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66375G0000X197 Specifications
Type Description
Series:B66375
Package:Box
Part Status:Active
Core Type:E
Supplier Device Package:E 80 x 38 x 20
Material:N97
Diameter:-
Inductance Factor (Al):4.7 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1770
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.47
Effective Length (le) mm:184
Effective Area (Ae) mm²:388
Minimum Core Cross Section (Amin) mm²:388
Effective Magnetic Volume (Ve) mm³:71800
Finish:Uncoated
Height:1.516" (38.50mm)
Length:3.150" (80.00mm)
Width:0.795" (20.20mm)
