PC95EL13X4.4-Z

PC95EL13X4.4-Z

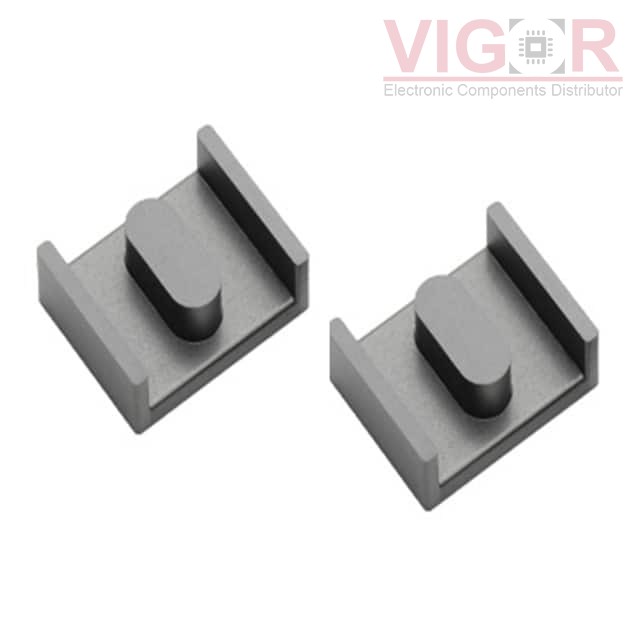

Image is for reference,
please contact us to get the real picture

Part No :

PC95EL13X4.4-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE EL 3.16UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
PC95EL13X4.4-Z PDF
Availability
197 pieces
Unit Price
$1.41000

Current price of PC95EL13X4.4-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95EL13X4.4-Z Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:EL
Supplier Device Package:EI 13 x 4.4
Material:PC95
Diameter:-
Inductance Factor (Al):3.16 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.67
Effective Length (le) mm:23.1
Effective Area (Ae) mm²:15.4
Minimum Core Cross Section (Amin) mm²:22.4
Effective Magnetic Volume (Ve) mm³:357
Finish:Uncoated
Height:2.19mm
Length:13.00mm
Width:10.40mm
