PC47EER28L-Z

PC47EER28L-Z

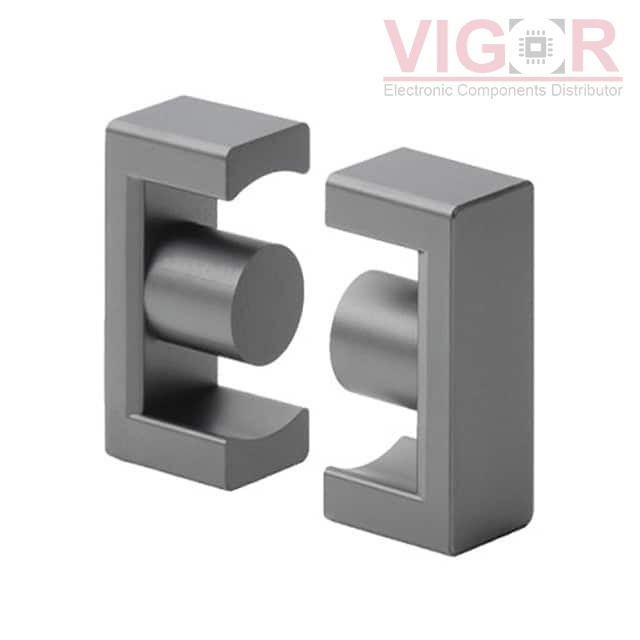

Image is for reference,
please contact us to get the real picture

Part No :

PC47EER28L-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE EER 2.52UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
PC47EER28L-Z PDF
Availability
0 pieces
Unit Price
$2.09000

Current price of PC47EER28L-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC47EER28L-Z Specifications
Type Description
Series:E
Package:Tray
Part Status:Active
Core Type:E
Supplier Device Package:EER 28
Material:PC47
Diameter:-
Inductance Factor (Al):2.52 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.93
Effective Length (le) mm:75.5
Effective Area (Ae) mm²:81.4
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:6150
Finish:Uncoated
Height:16.90mm
Length:28.55mm
Width:11.40mm
