B65811J0000R049

B65811J0000R049

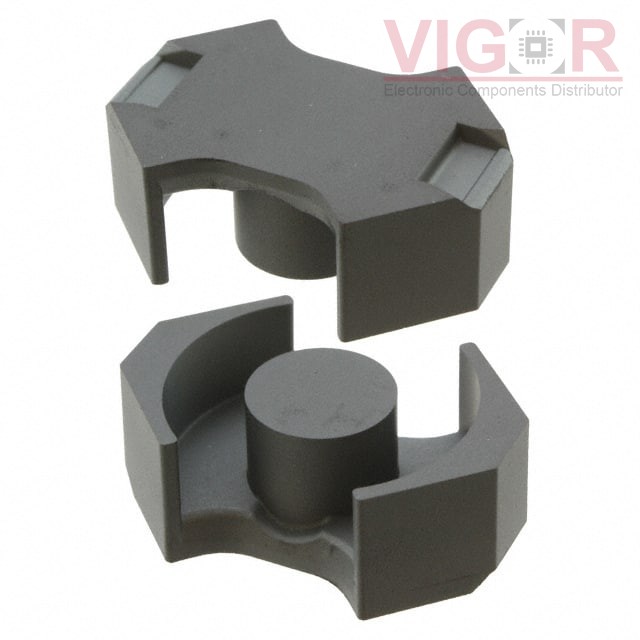

Image is for reference,
please contact us to get the real picture

Part No :

B65811J0000R049

Manufacturer
TDK EPCOS
Description
FERRITE CORE RM 2.2UH N49 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
B65811J0000R049 PDF
Availability
216 pieces
Unit Price
$2.79000

Current price of B65811J0000R049 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65811J0000R049 Specifications
Type Description
Series:B65811
Package:Box
Part Status:Active
Core Type:RM
Supplier Device Package:RM 8
Material:N49
Diameter:-
Inductance Factor (Al):2.2 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1040
Initial Permeability (µi):1500
Core Factor (ΣI/A) mm-1:0.59
Effective Length (le) mm:38
Effective Area (Ae) mm²:64
Minimum Core Cross Section (Amin) mm²:55
Effective Magnetic Volume (Ve) mm³:2430
Finish:Uncoated
Height:8.25mm
Length:23.20mm
Width:11.00mm
