B65523J0400K087

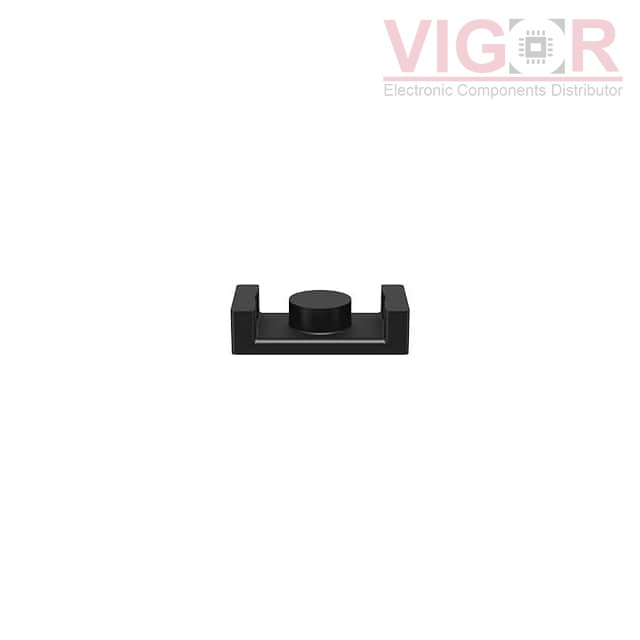

Image is for reference,
please contact us to get the real picture

Part No :: B65523J0400K087

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: B65523J0400K087 PDF

Availability: 0 pieces

Unit Price: ~~$0.41230~~

Current price of B65523J0400K087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65523J0400K087 Specifications

Type	Description
Series:	B65523
Package:	Box
Part Status:	Active
Core Type:	ER
Supplier Device Package:	ER 9.5 x 5
Material:	N87
Diameter:	-
Inductance Factor (Al):	400 nH
Tolerance:	±10%
Gap:	Gapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	1.54
Effective Length (le) mm:	13.6
Effective Area (Ae) mm²:	8.81
Minimum Core Cross Section (Amin) mm²:	7.6
Effective Magnetic Volume (Ve) mm³:	120
Finish:	Uncoated
Height:	2.50mm
Length:	9.50mm
Width:	5.00mm

Please confirm the specifications of the products when ordering.
