TX22/14/6.4-3C94

TX22/14/6.4-3C94

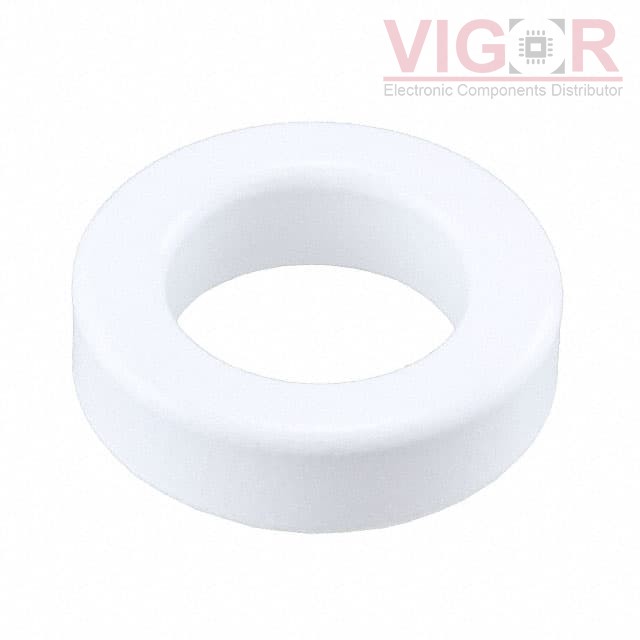

Image is for reference,
please contact us to get the real picture

Part No :

TX22/14/6.4-3C94

Manufacturer
FERROXCUBE
Description
FERRITE CORES ROUND
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
TX22/14/6.4-3C94 PDF
Availability
256 pieces
Unit Price
$0.92000

Current price of TX22/14/6.4-3C94 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TX22/14/6.4-3C94 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Core Type:Toroid
Supplier Device Package:TX 22 x 14 x 6.4
Material:3C94
Diameter:22.35mm
Inductance Factor (Al):-
Tolerance:±20%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):2300
Core Factor (ΣI/A) mm-1:2.2
Effective Length (le) mm:54.2
Effective Area (Ae) mm²:24.8
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:1340
Finish:Epoxy
Height:6.75mm
Length:-
Width:-
