PC95ER25/5.5/18-Z

PC95ER25/5.5/18-Z

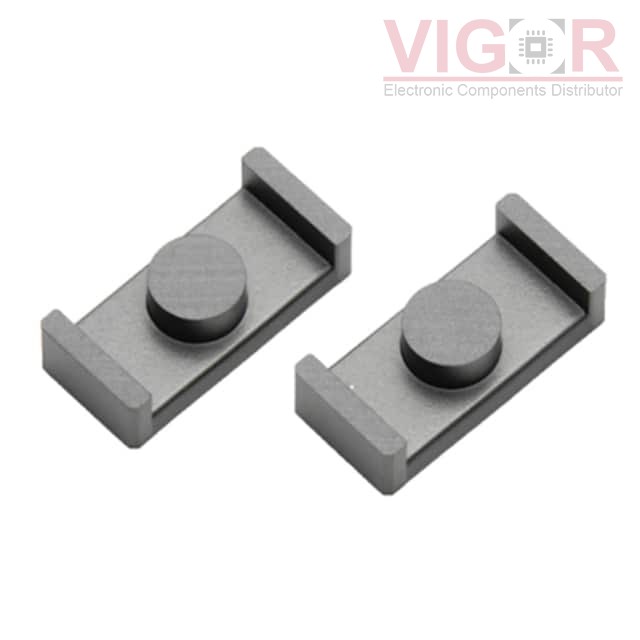

Image is for reference,
please contact us to get the real picture

Part No :

PC95ER25/5.5/18-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE ER 4.4UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
PC95ER25/5.5/18-Z PDF
Availability
1196 pieces
Unit Price
$2.00000

Current price of PC95ER25/5.5/18-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95ER25/5.5/18-Z Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:ER
Supplier Device Package:ER 25 x 5.5 x 18
Material:PC95
Diameter:-
Inductance Factor (Al):4.4 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.49
Effective Length (le) mm:53.7
Effective Area (Ae) mm²:26.1
Minimum Core Cross Section (Amin) mm²:38.5
Effective Magnetic Volume (Ve) mm³:1400
Finish:Uncoated
Height:2.75mm
Length:25.30mm
Width:18.00mm
