EFD15/8/5-3F36-S

EFD15/8/5-3F36-S

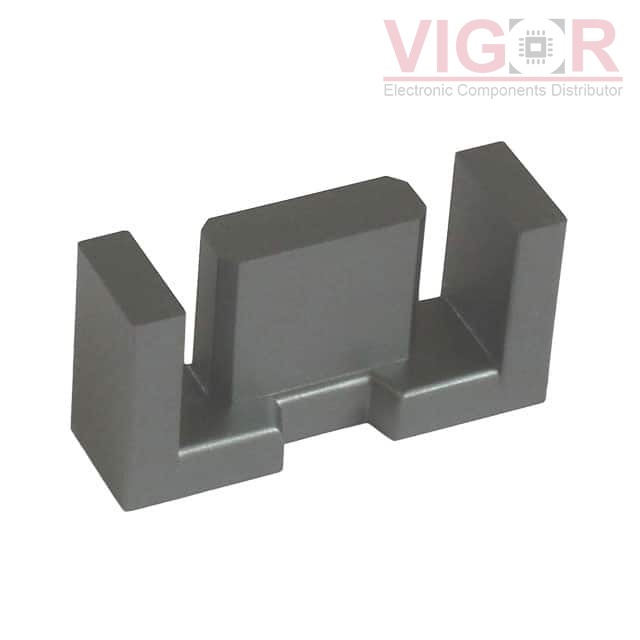

Image is for reference,
please contact us to get the real picture

Part No :

EFD15/8/5-3F36-S

Manufacturer
FERROXCUBE
Description
FERRITE CORE 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
EFD15/8/5-3F36-S PDF
Availability
633 pieces
Unit Price
$1.67000

Current price of EFD15/8/5-3F36-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EFD15/8/5-3F36-S Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Core Type:EFD
Supplier Device Package:EFD 15 x 8 x 5
Material:3F36
Diameter:-
Inductance Factor (Al):-
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):1170
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:2.27
Effective Length (le) mm:34
Effective Area (Ae) mm²:15
Minimum Core Cross Section (Amin) mm²:12.2
Effective Magnetic Volume (Ve) mm³:510
Finish:Uncoated
Height:7.50mm
Length:15.00mm
Width:4.65mm
