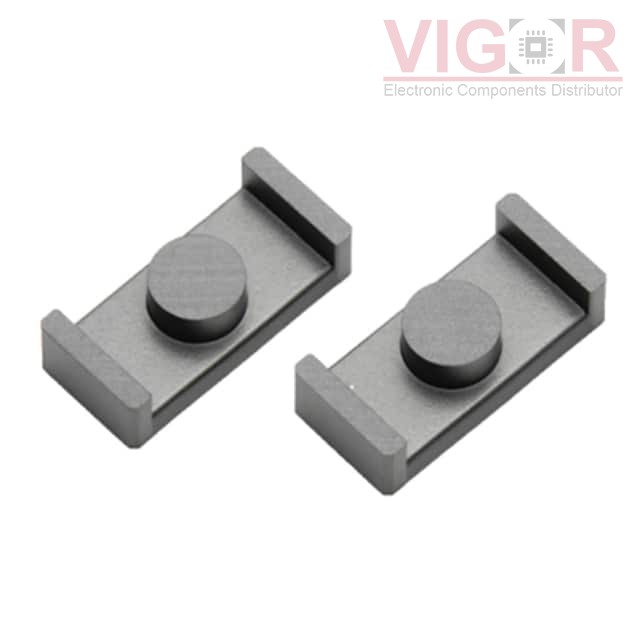

PC95ER18/5/12-Z

Image is for reference,
please contact us to get the real picture

Part No :: PC95ER18/5/12-Z

Manufacturer: TDK Corporation

Description: FERRITE CORE ER 3.5UH 2PC SET

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: PC95ER18/5/12-Z PDF

Availability: 337 pieces

Unit Price: ~~$1.38000~~

Current price of PC95ER18/5/12-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95ER18/5/12-Z Specifications

Type	Description
Series:	Planar
Package:	Tray
Part Status:	Active
Core Type:	ER
Supplier Device Package:	ER 18 x 5 x 12
Material:	PC95
Diameter:	-
Inductance Factor (Al):	3.5 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.6
Effective Length (le) mm:	32.8
Effective Area (Ae) mm²:	19.7
Minimum Core Cross Section (Amin) mm²:	28.3
Effective Magnetic Volume (Ve) mm³:	645
Finish:	Uncoated
Height:	2.50mm
Length:	18.15mm
Width:	12.00mm

Please confirm the specifications of the products when ordering.
