PC47EER42-Z

PC47EER42-Z

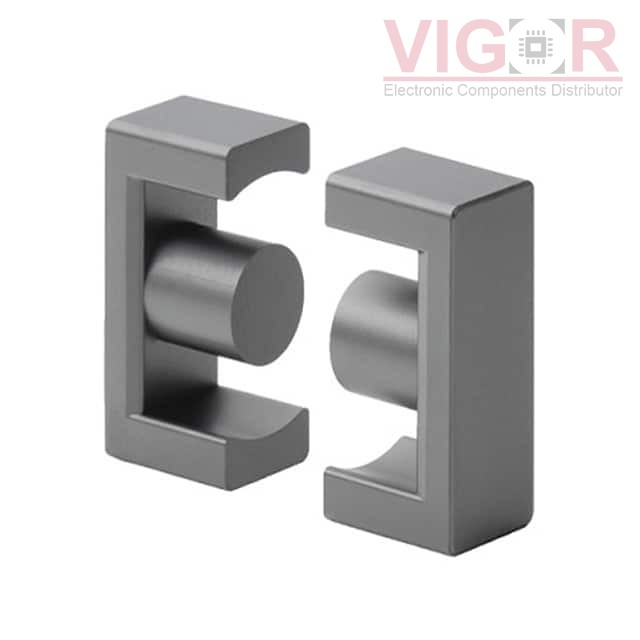

Image is for reference,
please contact us to get the real picture

Part No :

PC47EER42-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE EER 4.69UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
PC47EER42-Z PDF
Availability
23 pieces
Unit Price
$7.37000

Current price of PC47EER42-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC47EER42-Z Specifications
Type Description
Series:E
Package:Tray
Part Status:Active
Core Type:E
Supplier Device Package:EER 42
Material:PC47
Diameter:-
Inductance Factor (Al):4.69 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.51
Effective Length (le) mm:98.8
Effective Area (Ae) mm²:194
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:19200
Finish:Uncoated
Height:22.40mm
Length:42.00mm
Width:15.50mm
