PC47EPC17-Z

PC47EPC17-Z

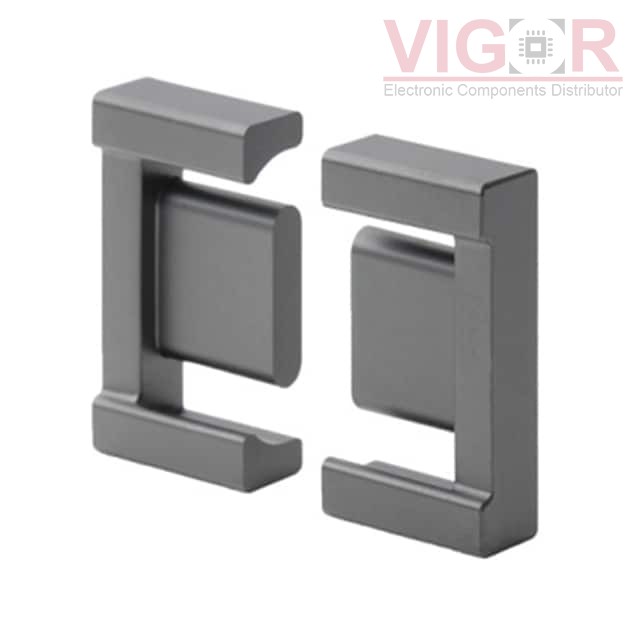

Image is for reference,
please contact us to get the real picture

Part No :

PC47EPC17-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE EPC 1.15UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
PC47EPC17-Z PDF
Availability
138 pieces
Unit Price
$0.81000

Current price of PC47EPC17-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC47EPC17-Z Specifications
Type Description
Series:EPC
Package:Tray
Part Status:Active
Core Type:EPC
Supplier Device Package:EPC 17
Material:PC47
Diameter:-
Inductance Factor (Al):1.15 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:1.76
Effective Length (le) mm:40.2
Effective Area (Ae) mm²:22.8
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:917
Finish:Uncoated
Height:8.55mm
Length:17.60mm
Width:6.00mm
