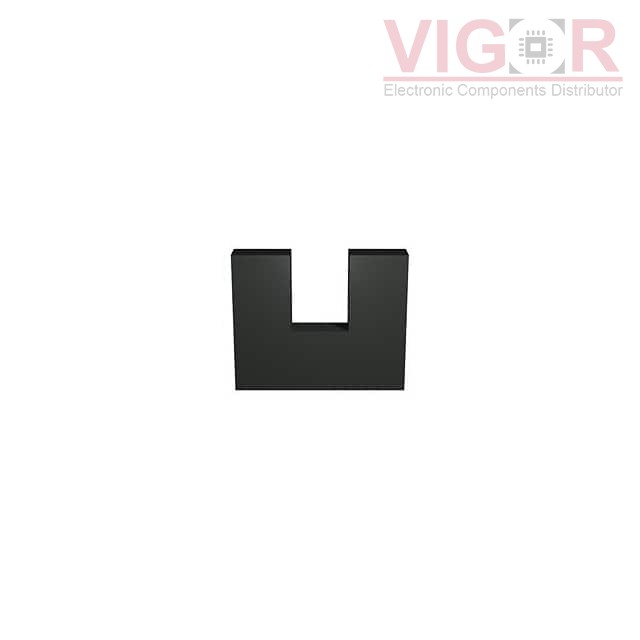

B67345B0003X095

B67345B0003X095

Image is for reference,
please contact us to get the real picture

Part No :

B67345B0003X095

Manufacturer
TDK EPCOS
Description
U93/76/16 N95 4100 +30% -20%
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
B67345B0003X095 PDF
Availability
0 pieces
Unit Price
$21.79344

Current price of B67345B0003X095 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B67345B0003X095 Specifications
Type Description
Series:B67345
Package:Box
Part Status:Active
Core Type:U
Supplier Device Package:U 93 x 76 x 16
Material:N95
Diameter:-
Inductance Factor (Al):4.1 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):2578
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.79
Effective Length (le) mm:354
Effective Area (Ae) mm²:448
Minimum Core Cross Section (Amin) mm²:448
Effective Magnetic Volume (Ve) mm³:159000
Finish:Uncoated
Height:21.30mm
Length:93.00mm
Width:16.00mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B65841A0000Y038

B65841A0000Y038

FERRITE CORE EP 4.8UH T38 2PCS
HOT TX36/23/15-3C94

TX36/23/15-3C94

FERRITE CORES ROUND

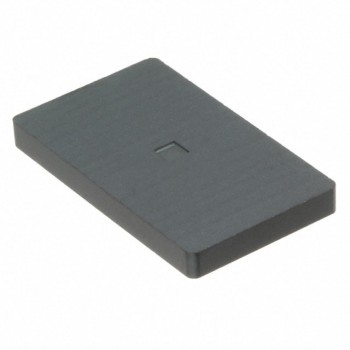

HOT B66293K0000X187
