PC47EI40-Z

PC47EI40-Z

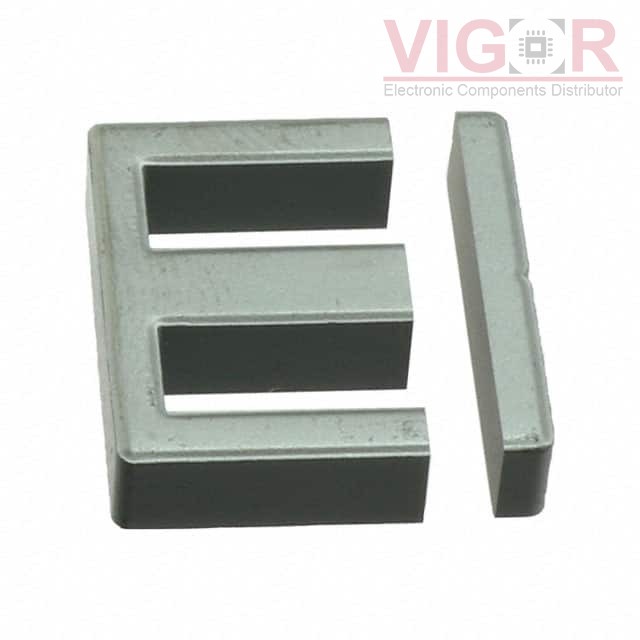

Image is for reference,
please contact us to get the real picture

Part No :

PC47EI40-Z

Manufacturer
TDK Corporation
Description
EI CORE SMPS TRANSFORMER 1 SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
PC47EI40-Z PDF
Availability
0 pieces
Unit Price
$4.21000

Current price of PC47EI40-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC47EI40-Z Specifications
Type Description
Series:E
Package:Tray
Part Status:Active
Core Type:E
Supplier Device Package:-
Material:PC47
Diameter:-
Inductance Factor (Al):4.86 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):2500
Core Factor (ΣI/A) mm-1:0.52
Effective Length (le) mm:77
Effective Area (Ae) mm²:148
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:11400
Finish:Uncoated
Height:-
Length:1.575" (40.00mm)
Width:-
