B65684A0000R027

B65684A0000R027

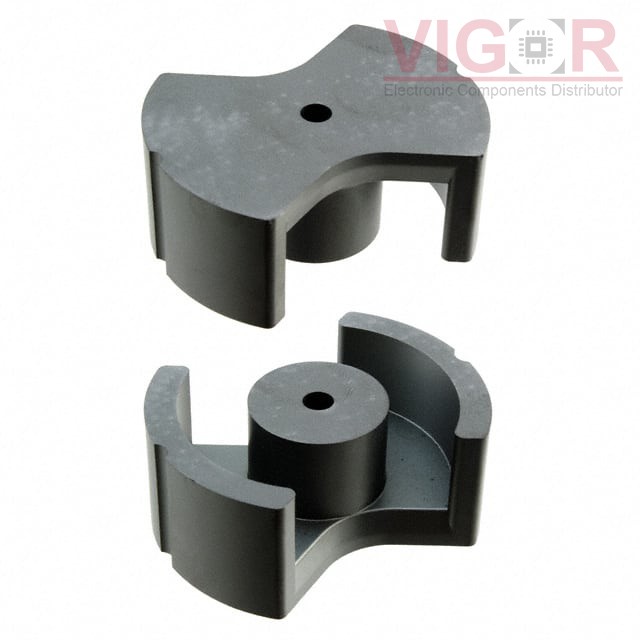

Image is for reference,
please contact us to get the real picture

Part No :

B65684A0000R027

Manufacturer
TDK EPCOS
Description
FERRITE CORE PM 9.2UH N27 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
B65684A0000R027 PDF
Availability
31 pieces
Unit Price
$22.29000

Current price of B65684A0000R027 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65684A0000R027 Specifications
Type Description
Series:B65684
Package:Box
Part Status:Active
Core Type:PM
Supplier Device Package:PM 62 x 49
Material:N27
Diameter:62.00mm
Inductance Factor (Al):9.2 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1400
Initial Permeability (µi):2000
Core Factor (ΣI/A) mm-1:0.191
Effective Length (le) mm:109
Effective Area (Ae) mm²:570
Minimum Core Cross Section (Amin) mm²:470
Effective Magnetic Volume (Ve) mm³:62000
Finish:Uncoated
Height:24.50mm
Length:-
Width:-
