B66395G0500X187

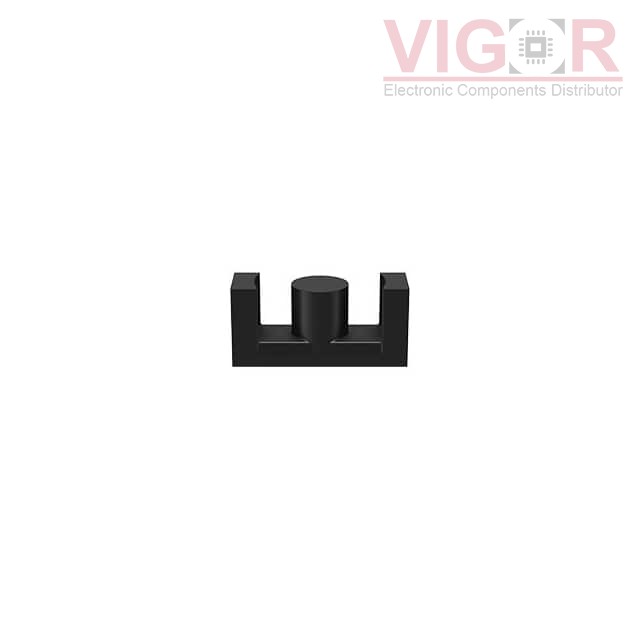

Image is for reference,
please contact us to get the real picture

Part No :: B66395G0500X187

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: B66395G0500X187 PDF

Availability: 236 pieces

Unit Price: ~~$5.66000~~

Current price of B66395G0500X187 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66395G0500X187 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	ETD
Supplier Device Package:	ETD 54 x 28 x 19
Material:	N87
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	-
Effective Permeability (µe):	-
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	0.45
Effective Length (le) mm:	127
Effective Area (Ae) mm²:	280
Minimum Core Cross Section (Amin) mm²:	280
Effective Magnetic Volume (Ve) mm³:	35600
Finish:	Uncoated
Height:	27.80mm
Length:	54.50mm
Width:	19.30mm
