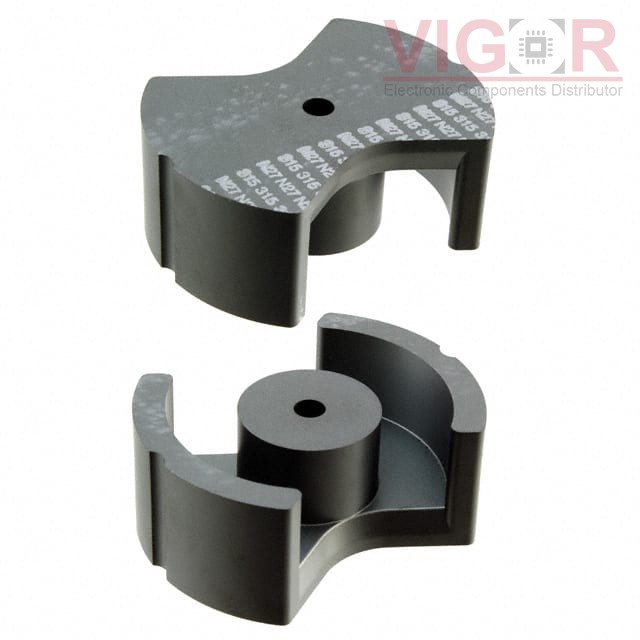

B65684A0315A027

B65684A0315A027

Image is for reference,
please contact us to get the real picture

Part No :

B65684A0315A027

Manufacturer
TDK EPCOS
Description
FERRITE CORE PM 315NH N27 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
B65684A0315A027 PDF
Availability
40 pieces
Unit Price
$23.31000

Current price of B65684A0315A027 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65684A0315A027 Specifications
Type Description
Series:B65684
Package:Box
Part Status:Active
Core Type:PM
Supplier Device Package:PM 62 x 49
Material:N27
Diameter:62.00mm
Inductance Factor (Al):315 nH
Tolerance:±3%
Gap:Gapped
Effective Permeability (µe):48
Initial Permeability (µi):2000
Core Factor (ΣI/A) mm-1:0.191
Effective Length (le) mm:109
Effective Area (Ae) mm²:570
Minimum Core Cross Section (Amin) mm²:470
Effective Magnetic Volume (Ve) mm³:62000
Finish:Uncoated
Height:24.50mm
Length:-
Width:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B65803N0100A048

B65803N0100A048

FERRITE CORE RM 100NH N48 2PCS
HOT B66388B1000T001

B66388B1000T001

CF-E65/32/27-1S

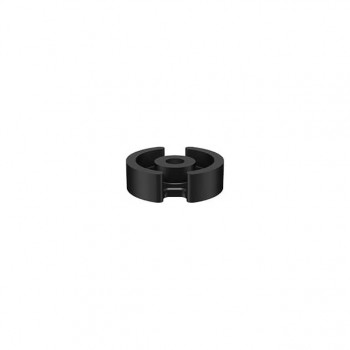

HOT B65517D0040A001
