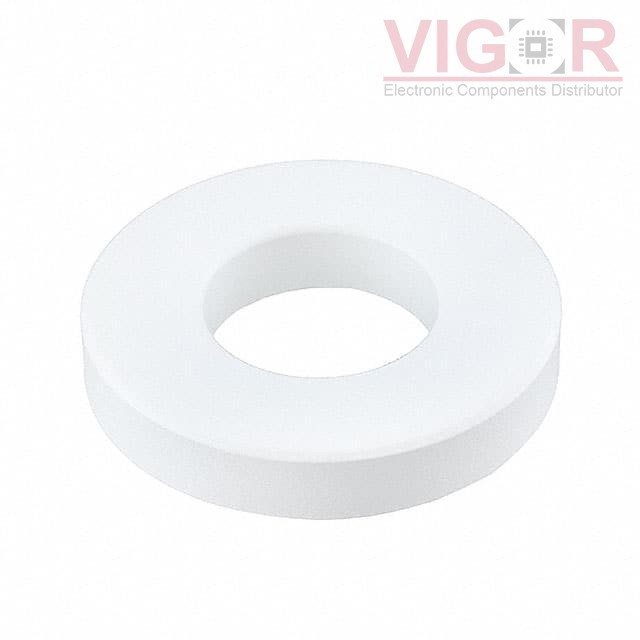

TX80/40/15-3C11

Image is for reference,
please contact us to get the real picture

Part No :: TX80/40/15-3C11

Manufacturer: FERROXCUBE

Description: FERRITE CORES ROUND

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: TX80/40/15-3C11 PDF

Availability: 0 pieces

Unit Price: ~~$15.95000~~

Current price of TX80/40/15-3C11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TX80/40/15-3C11 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	TX 80 x 40 x 15
Material:	3C11
Diameter:	83.00mm
Inductance Factor (Al):	-
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	4300
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.604
Effective Length (le) mm:	174
Effective Area (Ae) mm²:	288
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	50200
Finish:	Epoxy
Height:	15.90mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
