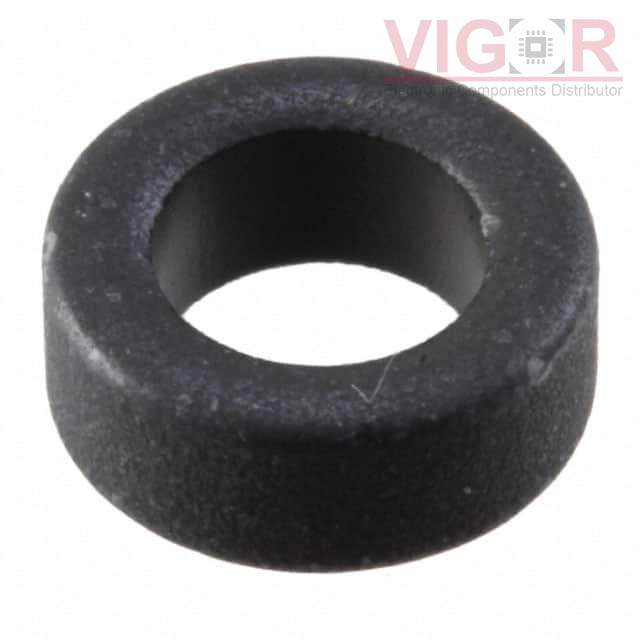

B64290P0037X001

B64290P0037X001

Image is for reference,
please contact us to get the real picture

Part No :

B64290P0037X001

Manufacturer
TDK EPCOS
Description
FERRITE CORE TOROID 20NH K1
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
B64290P0037X001 PDF
Availability
11444 pieces
Unit Price
$0.92000

Current price of B64290P0037X001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290P0037X001 Specifications
Type Description
Series:B64290
Package:Box
Part Status:Active
Core Type:Toroid
Supplier Device Package:-
Material:K1
Diameter:6.32mm
Inductance Factor (Al):20 nH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):80
Core Factor (ΣI/A) mm-1:4.97
Effective Length (le) mm:15.21
Effective Area (Ae) mm²:3.06
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:46.5
Finish:Parylene
Height:2.52mm
Length:-
Width:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

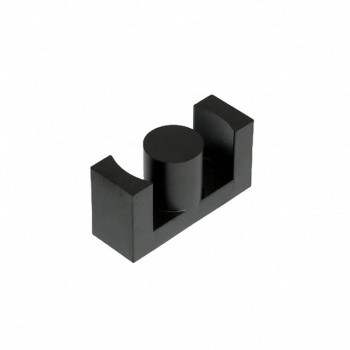

HOT B66397G0200X187

B66397G0200X187

FERRITE CORE

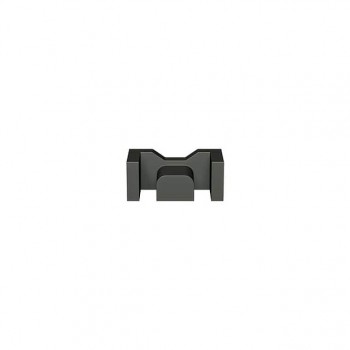

HOT B66432G0000X195

B66432G0000X195

FERRITE CORES

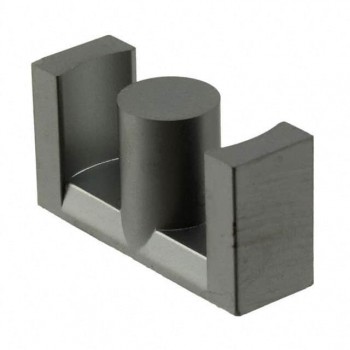

HOT B66363G0000X187
