B65805J0160A048

B65805J0160A048

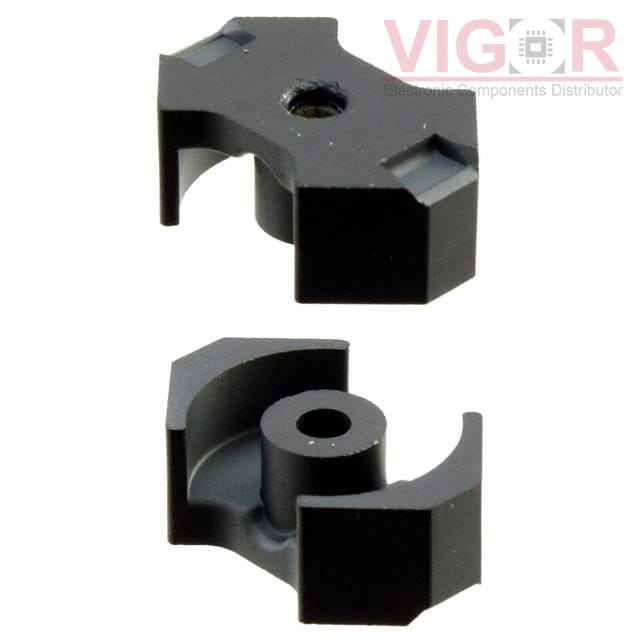

Image is for reference,
please contact us to get the real picture

Part No :

B65805J0160A048

Manufacturer
TDK EPCOS
Description
FERRITE CORE RM 160NH N48 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
B65805J0160A048 PDF
Availability
0 pieces
Unit Price
$1.15763

Current price of B65805J0160A048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65805J0160A048 Specifications
Type Description
Series:B65805
Package:Box
Part Status:Active
Core Type:RM
Supplier Device Package:RM 5
Material:N48
Diameter:-
Inductance Factor (Al):160 nH
Tolerance:±3%
Gap:Gapped
Effective Permeability (µe):127
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.93
Effective Length (le) mm:22.1
Effective Area (Ae) mm²:23.8
Minimum Core Cross Section (Amin) mm²:18
Effective Magnetic Volume (Ve) mm³:526
Finish:Uncoated
Height:5.25mm
Length:14.60mm
Width:6.80mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B65928A0000X022

B65928A0000X022

FERRITE CORE

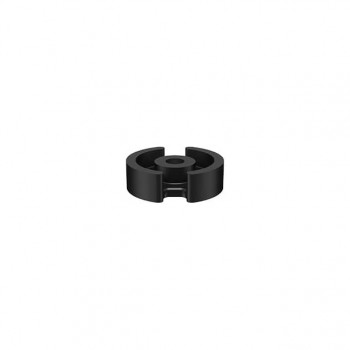

HOT B65517T0100A048

B65517T0100A048

FERRITE CORE P 100NH N48 2PCS

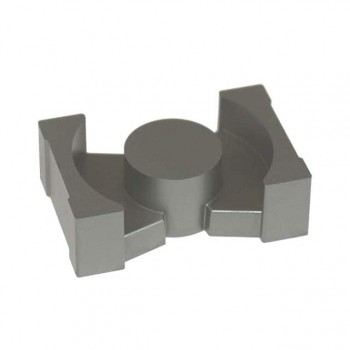

HOT PQ26/25-3C97
