B65525J0000R092

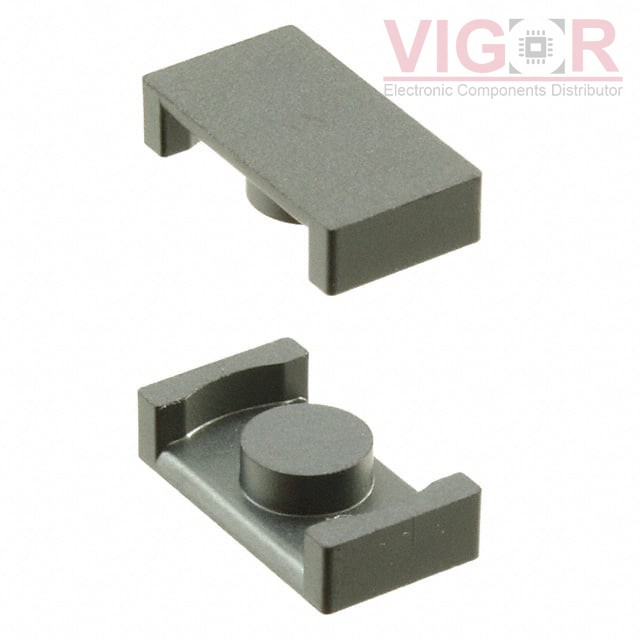

Image is for reference,
please contact us to get the real picture

Part No :: B65525J0000R092

Manufacturer: TDK EPCOS

Description: FERRITE CORE ER 900NH N92 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: B65525J0000R092 PDF

Availability: 0 pieces

Unit Price: ~~$0.59119~~

Current price of B65525J0000R092 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65525J0000R092 Specifications

Type	Description
Series:	B65525
Package:	Box
Part Status:	Active
Core Type:	ER
Supplier Device Package:	ER 11 x 5
Material:	N92
Diameter:	-
Inductance Factor (Al):	900 nH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	814
Initial Permeability (µi):	1500
Core Factor (ΣI/A) mm^-1:	1.1
Effective Length (le) mm:	14.1
Effective Area (Ae) mm²:	12.4
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	174
Finish:	Uncoated
Height:	2.50mm
Length:	11.00mm
Width:	6.00mm

Please confirm the specifications of the products when ordering.
