B65523J0000R087

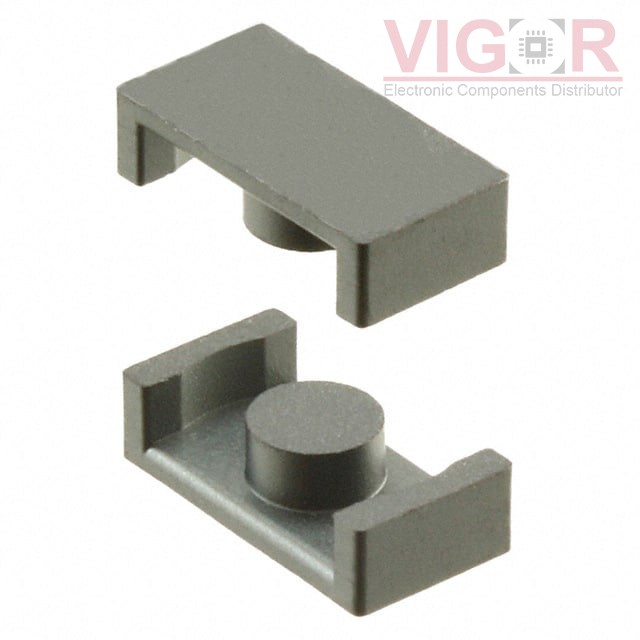

Image is for reference,
please contact us to get the real picture

Part No :: B65523J0000R087

Manufacturer: TDK EPCOS

Description: FERRITE CORE ER 800NH N87 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: B65523J0000R087 PDF

Availability: 5472 pieces

Unit Price: ~~$0.74000~~

Current price of B65523J0000R087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65523J0000R087 Specifications

Type	Description
Series:	B65523
Package:	Box
Part Status:	Active
Core Type:	ER
Supplier Device Package:	ER 9.5 x 5
Material:	N87
Diameter:	-
Inductance Factor (Al):	800 nH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1000
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	1.54
Effective Length (le) mm:	13.6
Effective Area (Ae) mm²:	8.81
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	120
Finish:	Uncoated
Height:	2.50mm
Length:	9.50mm
Width:	5.00mm

Please confirm the specifications of the products when ordering.
