TX80/40/15-3C94

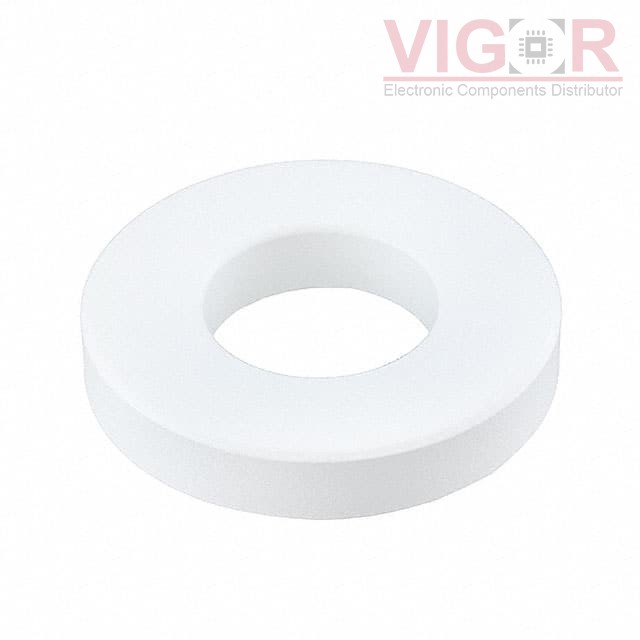

Image is for reference,
please contact us to get the real picture

Part No :: TX80/40/15-3C94

Manufacturer: FERROXCUBE

Description: FERRITE CORES ROUND

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: TX80/40/15-3C94 PDF

Availability: 0 pieces

Unit Price: ~~$16.11000~~

Current price of TX80/40/15-3C94 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TX80/40/15-3C94 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	TX 80 x 40 x 15
Material:	3C94
Diameter:	83.00mm
Inductance Factor (Al):	-
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	2300
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.604
Effective Length (le) mm:	174
Effective Area (Ae) mm²:	288
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	50200
Finish:	Epoxy
Height:	15.90mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

7895400721

95 PLANAR EI CORE SET

HOT

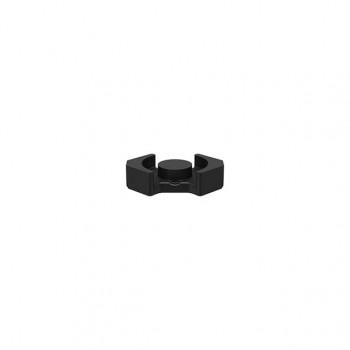

B65887P0000R092
