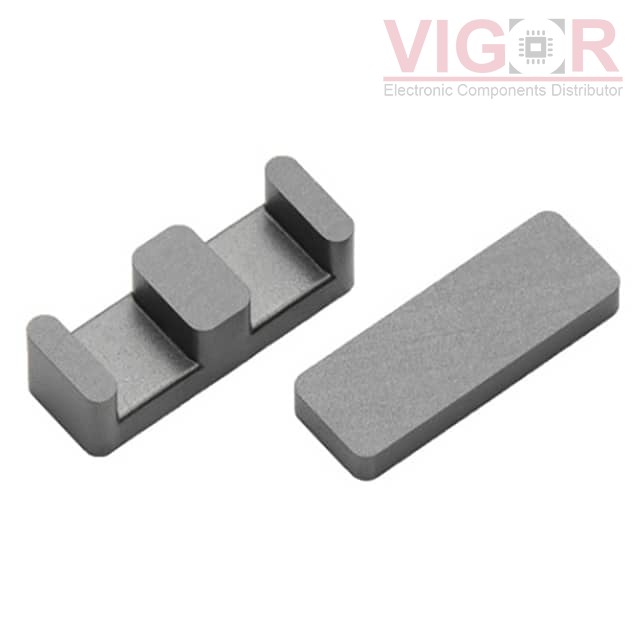

PC95EI22/8/16-Z

PC95EI22/8/16-Z

Image is for reference,
please contact us to get the real picture

Part No :

PC95EI22/8/16-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE EI 8.01UH 1SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
PC95EI22/8/16-Z PDF
Availability
183 pieces
Unit Price
$2.15000

Current price of PC95EI22/8/16-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95EI22/8/16-Z Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:HE, PLT
Supplier Device Package:EI 22 x 8 x 16
Material:PC95
Diameter:-
Inductance Factor (Al):8.01 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.33
Effective Length (le) mm:79
Effective Area (Ae) mm²:26.1
Minimum Core Cross Section (Amin) mm²:79
Effective Magnetic Volume (Ve) mm³:2060
Finish:Uncoated
Height:8.00mm
Length:21.80mm
Width:15.80mm
