B65843A0200B045

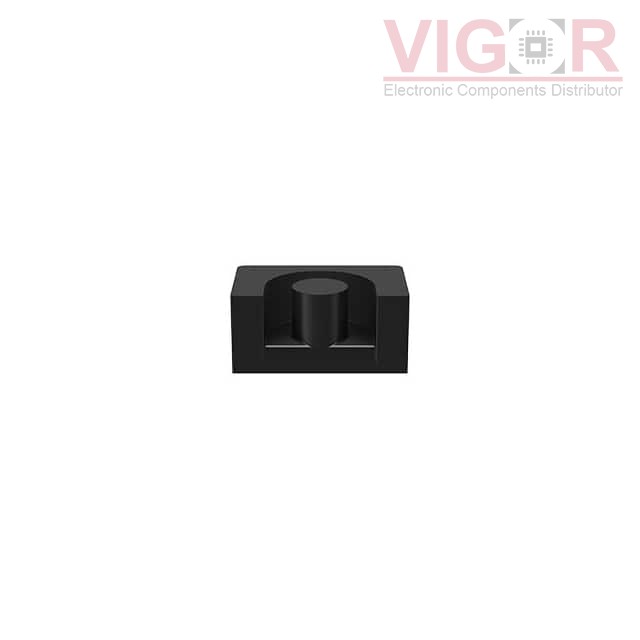

Image is for reference,
please contact us to get the real picture

Part No :: B65843A0200B045

Manufacturer: TDK EPCOS

Description: FERRITE CORE EP 200NH N45 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: B65843A0200B045 PDF

Availability: 0 pieces

Unit Price: ~~$0.71820~~

Current price of B65843A0200B045 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65843A0200B045 Specifications

Type	Description
Series:	B65843A
Package:	Box
Part Status:	Active
Core Type:	EP
Supplier Device Package:	EP 13
Material:	N45
Diameter:	-
Inductance Factor (Al):	200 nH
Tolerance:	±4%
Gap:	Gapped
Effective Permeability (µe):	198
Initial Permeability (µi):	3800
Core Factor (ΣI/A) mm^-1:	1.24
Effective Length (le) mm:	24.2
Effective Area (Ae) mm²:	19.5
Minimum Core Cross Section (Amin) mm²:	14.9
Effective Magnetic Volume (Ve) mm³:	472
Finish:	Uncoated
Height:	6.50mm
Length:	12.80mm
Width:	9.00mm

Please confirm the specifications of the products when ordering.
