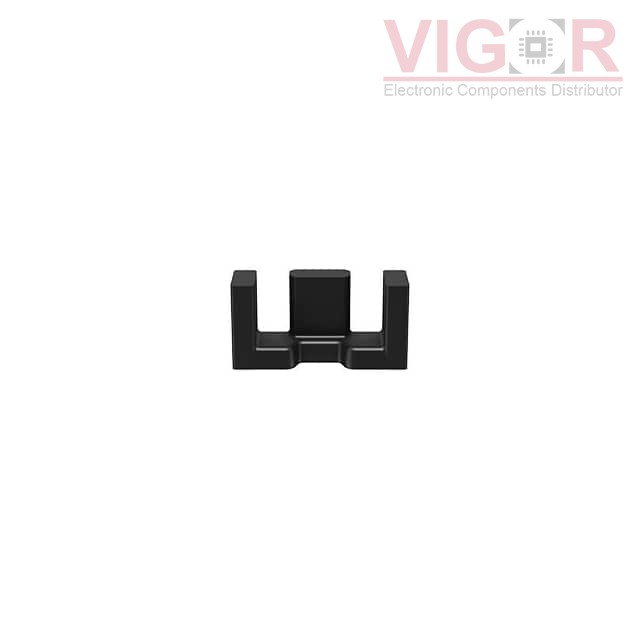

B66411G0000X197

Image is for reference,
please contact us to get the real picture

Part No :: B66411G0000X197

Manufacturer: TDK EPCOS

Description: FERRITE CORES

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: B66411G0000X197 PDF

Availability: 0 pieces

Unit Price: ~~$0.32239~~

Current price of B66411G0000X197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66411G0000X197 Specifications

Type	Description
Series:	*
Package:	Tape & Reel (TR)
Part Status:	Active
Core Type:	EFD
Supplier Device Package:	EFD 10/5/3
Material:	N97
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1200
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	3.21
Effective Length (le) mm:	23.1
Effective Area (Ae) mm²:	7.2
Minimum Core Cross Section (Amin) mm²:	6.5
Effective Magnetic Volume (Ve) mm³:	166
Finish:	Uncoated
Height:	5.20mm
Length:	10.50mm
Width:	2.70mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

9077025002

77 U CORE

HOT

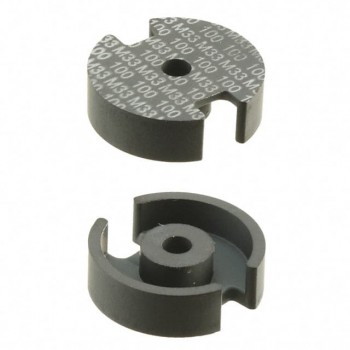

B65651T0100A033

FERRITE CORE P 100NH M33 2PCS

HOT

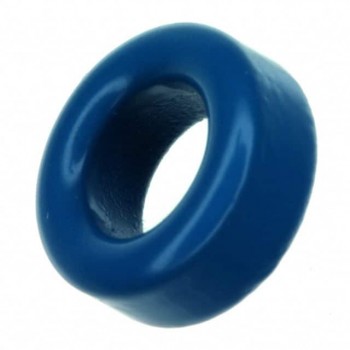

B64290L0038X046
