B65803J0000R097

B65803J0000R097

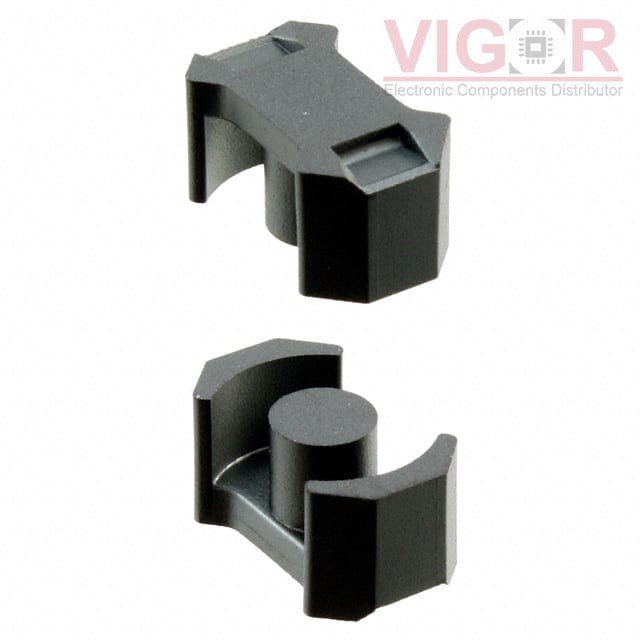

Image is for reference,
please contact us to get the real picture

Part No :

B65803J0000R097

Manufacturer
TDK EPCOS
Description
FERRITE CORE RM 1.1UH N97 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
B65803J0000R097 PDF
Availability
0 pieces
Unit Price
$1.10709

Current price of B65803J0000R097 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65803J0000R097 Specifications
Type Description
Series:B65803
Package:Box
Part Status:Active
Core Type:RM
Supplier Device Package:RM 4
Material:N97
Diameter:-
Inductance Factor (Al):1.1 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1480
Initial Permeability (µi):2300
Core Factor (ΣI/A) mm-1:1.7
Effective Length (le) mm:22
Effective Area (Ae) mm²:13
Minimum Core Cross Section (Amin) mm²:11.3
Effective Magnetic Volume (Ve) mm³:286
Finish:Uncoated
Height:5.25mm
Length:11.00mm
Width:4.60mm
