B65807J0000R049

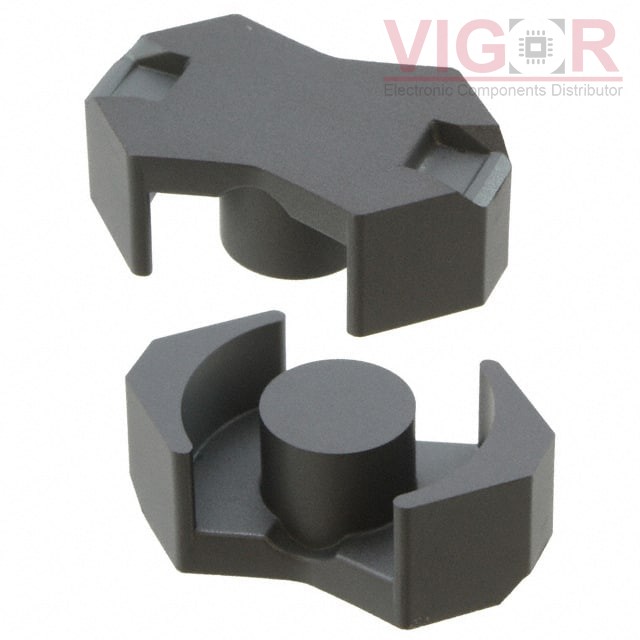

Image is for reference,
please contact us to get the real picture

Part No :: B65807J0000R049

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 1.7UH N49 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: B65807J0000R049 PDF

Availability: 763 pieces

Unit Price: ~~$2.02000~~

Current price of B65807J0000R049 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65807J0000R049 Specifications

Type	Description
Series:	B65807
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 6
Material:	N49
Diameter:	-
Inductance Factor (Al):	1.7 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1060
Initial Permeability (µi):	1500
Core Factor (ΣI/A) mm^-1:	0.78
Effective Length (le) mm:	28.6
Effective Area (Ae) mm²:	36.6
Minimum Core Cross Section (Amin) mm²:	31
Effective Magnetic Volume (Ve) mm³:	1050
Finish:	Uncoated
Height:	6.25mm
Length:	17.90mm
Width:	8.20mm
