B65841A0000Y066

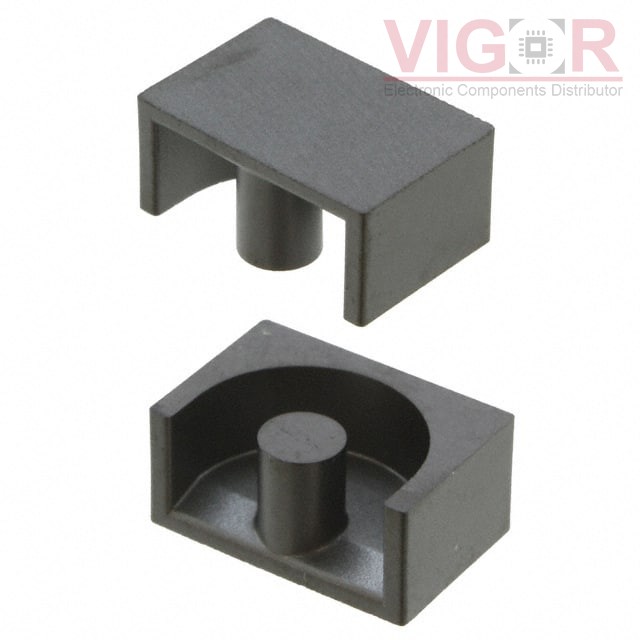

Image is for reference,
please contact us to get the real picture

Part No :: B65841A0000Y066

Manufacturer: TDK EPCOS

Description: FERRITE CORE EP 6UH T66 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Aug 08 - Aug 12 2025

DataSheet: B65841A0000Y066 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of B65841A0000Y066 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65841A0000Y066 Specifications

Type	Description
Series:	B65841
Package:	Box
Part Status:	Obsolete
Core Type:	EP
Supplier Device Package:	EP 10
Material:	T66
Diameter:	-
Inductance Factor (Al):	6 µH
Tolerance:	-30%, +40%
Gap:	Ungapped
Effective Permeability (µe):	8100
Initial Permeability (µi):	13000
Core Factor (ΣI/A) mm^-1:	1.7
Effective Length (le) mm:	19.2
Effective Area (Ae) mm²:	11.3
Minimum Core Cross Section (Amin) mm²:	8.5
Effective Magnetic Volume (Ve) mm³:	217
Finish:	Uncoated
Height:	5.20mm
Length:	11.80mm
Width:	7.85mm

Please confirm the specifications of the products when ordering.
