B4HD-253-M-36

B4HD-253-M-36

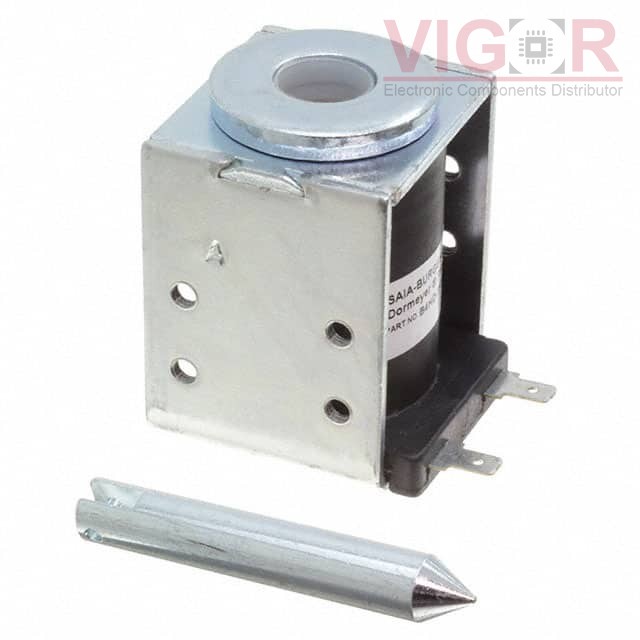

Image is for reference,
please contact us to get the real picture

Part No :

B4HD-253-M-36

Manufacturer
Saia (Division of Johnson Electric)
Description
OPEN FRAME SOLENOID B4HD - 24 VD
Catalog
Solenoids, Actuators
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
B4HD-253-M-36 PDF
Availability
85 pieces
Unit Price
$35.94000

Current price of B4HD-253-M-36 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B4HD-253-M-36 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Technology:Electromechanical
Type:Open Frame (Pull)
Duty Cycle:Continuous
Voltage - Rated:24VDC
Stroke Length:0.800" (20.32mm)
Power (Watts):12.5 W
DC Resistance (DCR):46.8Ohm
Bushing Thread:-
Mounting Type:Chassis Mount
Termination Style:Quick Connect - 0.187" (4.7mm)
Size / Dimension:2.180" L x 1.440" W x 1.630" H (55.37mm x 36.58mm x 41.40mm)
Diameter - Shaft:0.500" (12.70mm)
Shaft Detail:Clevis
